All professionals know the importance of the relationship between the signal and the figure of noise in an LNB, as a measure of the performance of a good LNB. Invacom presents its new range of Universal LNB'S:

SINGLE (1 exit)

TWIN (2 outputs)

QUATTRO (4 outputs / bands)

QUAD (4 outputs)

The INVACOM LNB'S with noise figure of 0.3 dB allow us to achieve a higher image and sound quality, even in the most compromised satellite installations. Its frequency of entrance in low band is of 10.7-11.7 GHz and in high band of 11.7-12.75 GHz. Its frequency of exit is of 950-2150 MHz and its gain, of 50-60 dB. The design of the LNB'S Invacom has been made with the latest 3D modeling software, which ensures the maximum transfer of energy from the satellite dish, to the electronics of the LNB. It is achieved thanks to the precise and optimal design of the housing and the illuminator.
Invacom's LNB'S specifications are superior to those of other manufacturers, since its phase noise is 10 dB better. The cleaner the oscillator of an LNB, the greater its performance.
The positive gain of Invacom's LNBs compensates for long cable runs and helps prevent channel losses, due to harmonic distortions, in the receiver.
All Invacom LNB's are electrically and pressure tested twice, in several stages of their assembly. The finished units are tested again in extreme cold and hot temperatures, to ensure unparalleled operation.

Finally, each unit arrives to the customer with its own test of profit and figure of noise by frequency and the 4 bands, guaranteeing to the maximum the quality of the product.

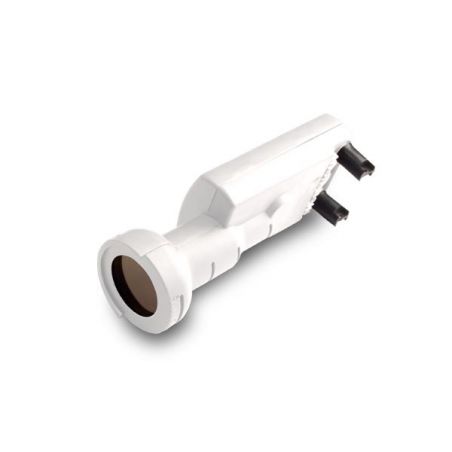

A high performance universal LNB with an integrated feed horn and 2 independent outputs.
It is normally used with fixed dishes to supply 2 receivers, in areas where the signal strength is low.

Features

• Input frequency 10.7 - 12.75 GHz
• Output frequency 950 - 2150 MHz
• Noise Figure 0.3dB typical
• Earn 50 - 60dB
• 40 mm interface clamp
• Ideal plate F / D 0.6
