search

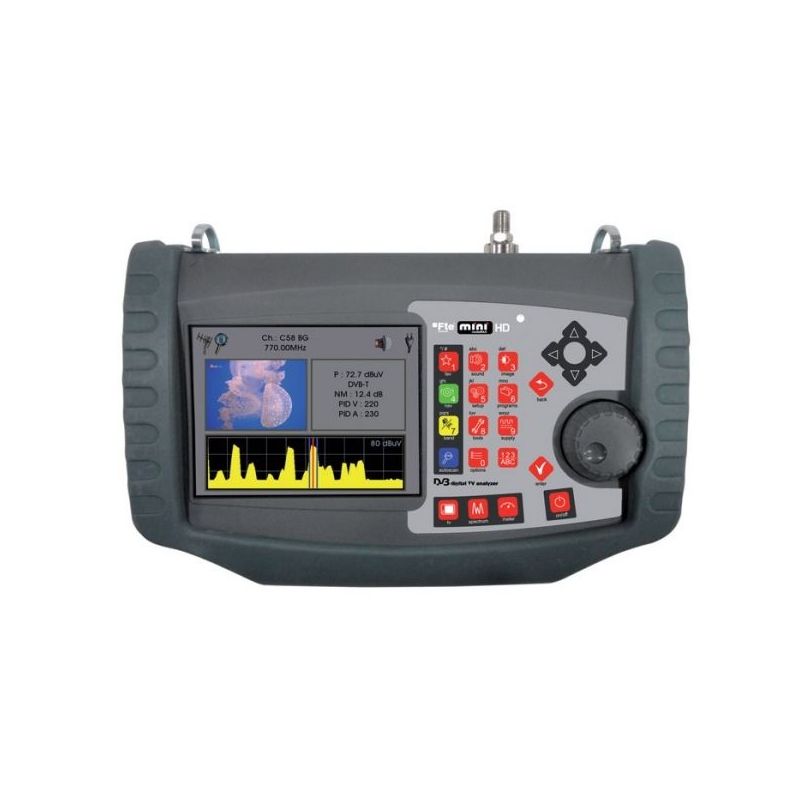

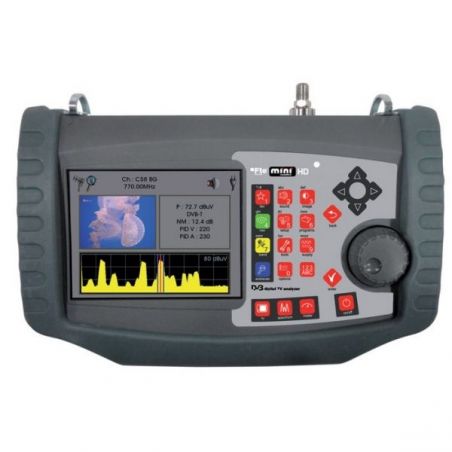

Field meter FTE Mini HD

Fte launches its new Mediamax Mini series field tester. An HD field meter that incorporates DVBT-2 and DVBC-2 measurements as a novelty. Multiple vision (means, spectrum and image) and a high resolution 6 'screen.

€2,286.90
Tax included
Reference fte-mini-hd
Brand Fte
Quantity
In Stock

Free shipping

Field meter FTE Mini HD

€2,286.90

MediaMAX mini S2CT-HD meter

Fte launches its new Mediamax Mini series field tester. An HD field meter that incorporates DVBT-2 and DVBC-2 measurements as a novelty. Multiple vision (means, spectrum and image) and a high resolution 6 'screen.

The mediaMAX MINI is the second generation of field meters from Fte Maximal.

Features

  • MPEG-2 and MPEG-4 H.264 video decoding
  • Dolby Digital Plus, AAC, MPEG-2 and MPEG-1 audio decoding
  • SD and HD formats
  • Compact 270 mm x 170 mm x 70 mm
  • Light weight 1.8 Kg
  • High resolution TFT screen 6
  • MAP (Meter Aided Programming) Function
  • EDM (ECO Disturbance Measure)
  • High resolution spectrum
  • Search and identifier of satellites
  • Advanced datalogger
  • Constellation DVB-S / S2, DVB-C

Advantage

  • Extremely intuitive for easy and fast use.
  • It does function PRO 200 - PRO 201 (That is, we can program the equipment of the Fte Maximal brand without the need of having a programmer control)
  • Identification of Satellites
  • Automatic identification of digital carriers
  • Thanks to its Groups mode we can have recorded reptiles and satellites
  • 2.5 hours autonomy
  • Advanced Super Datalogger (Allows us to make reports)
  • All measurements in one screen
  • Data transfer to the PC via USB 2.0
  • Sprect with automatic reference levelText Field Meter for the Web

Specifications

  MINI S2C2T2 HD
Code 3001061
Frequency
Rank 5-862 MHz and 863-2150 MHz
Resolution in frequency 50 KHz
Measurement dynamics 50 dB
RF standard
Measurement range 20 dBuV at 130 dBuV
Input impedanceTV standard

 75 Ohms
Estándar de TV  B/G (CCIR), B/G (DE), B/G (IT), M (PAL), /L' (France), I (UK), D/K/K' (OIRT),
M/N (USA y Japan), B/B (Australia), D/K PAL
Satelite Bands C and Ku
Analogical
Measurements Level, Video / Audio, C / N
Accuracy measured ± 1.5 dB at 25oC in TER and ± 2 dB in SAT at 25oC
Digital
Decoder Mpeg- 2 & Mpeg-4
Digital modulations DVB-T (ETSI EN 300 744)
DVB-T2 (ETSI EN 302 755)
DVB-C (ETSI EN 300 429)
DVB-C2 (ETSI EN 302 769)
DVB-S (ETSI EN 300 421)
DVB-S2 (ETSI EN 302 307)
Digital measures Potencia de canal, BER, MER, errores tChannel power, BER, MER, total errors, C / N, quality, noise margin
otales, C/N, calidad, noise margin
Constellation Yes (QPSK / 8 PSK / QAM)
Monitor / Connectivity
Size 6" TFT
Interfaces USB 2.0 / IN A-V/ RS-232 / RJ 45 / HDMI
Feeding
Battery Type Lithium-ion
Battery life 2.5 hours
LNB power 13V, 18V, 13V + 22 KHz. 18V+ 22 KHz
Ground preamplifier power 5V, 13V, 18V, 24V
Mechanical characteristics
Dimensions 270 x 170 x 70 mm
Weight
1.8 Kg + transport bag
