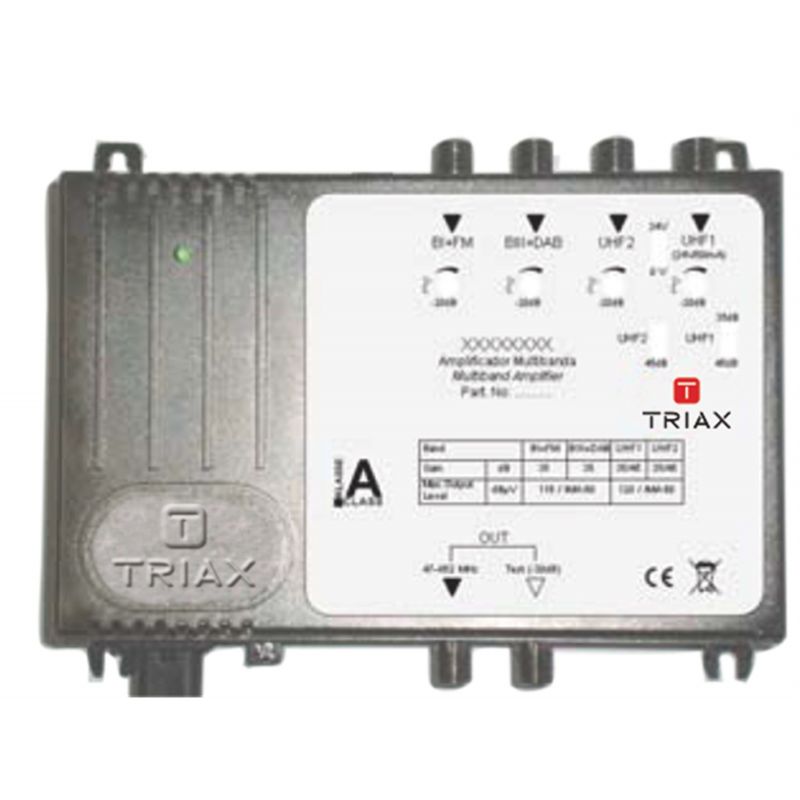

Central 4 inputs / 1 output Triax 45 dB TMA 445
The TMA 445 is a multiband amplifier for small distribution networks of TV and Radio signals. Compatible for analog and digital signals. It has four RF inputs (BI + FM, BIII + DAB, UHF1 and UHF2) and 1 output with separate amplification. Prepared for LTE.
€156.70
Tax included
Reference
triax-324446
Brand
Triax
Central 4 inputs / 1 output Triax 45 dB TMA 445
€156.70
The TMA 445 is a multiband amplifier for small distribution networks of TV and Radio signals. Compatible for analog and digital signals. It has four RF inputs (BI + FM, BIII + DAB, UHF1 and UHF2) and 1 output with separate amplification. Prepared for LTE.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663244467 |
| CHARACTERISTICS | |
| Output level @ 60dB IMD - UHF | 118 dBµV |
| FREQUENCY | |
| Frequency range BI/FM | 40...108 MHz |
| Frequency range BIII/DAB | 170...230 MHz |
| Frequency range UHF | 470...790 MHz |
| GAIN | |
| Gain - FM [47-108 MHz] | 30 dB |
| Gain - DAB [170-230 MHz] | 35 dB |
| Gain - UHF 1 [470-790 MHz] | 35...45 dB |
| Gain - UHF 2 [470-790 MHz] | 35...45 dB |
| LOSS | |
| Attenuation | 0-20 dB par entrée dB |
| OPERATIONAL | |
| Power Consumption (typ.) | 3,5 W |
| CONNECTORS | |
| Number of outputs | 1 |
| MECHANICAL | |
| Total Weight | 1,200 kg |
| Net Weight | 1,200 kg |
| Packaging Volume | 0,001 m3 |
