SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 1436 AND id_lang = 1 Central programmable amplifier Triax TMB300 5 innings with filters LTE
search

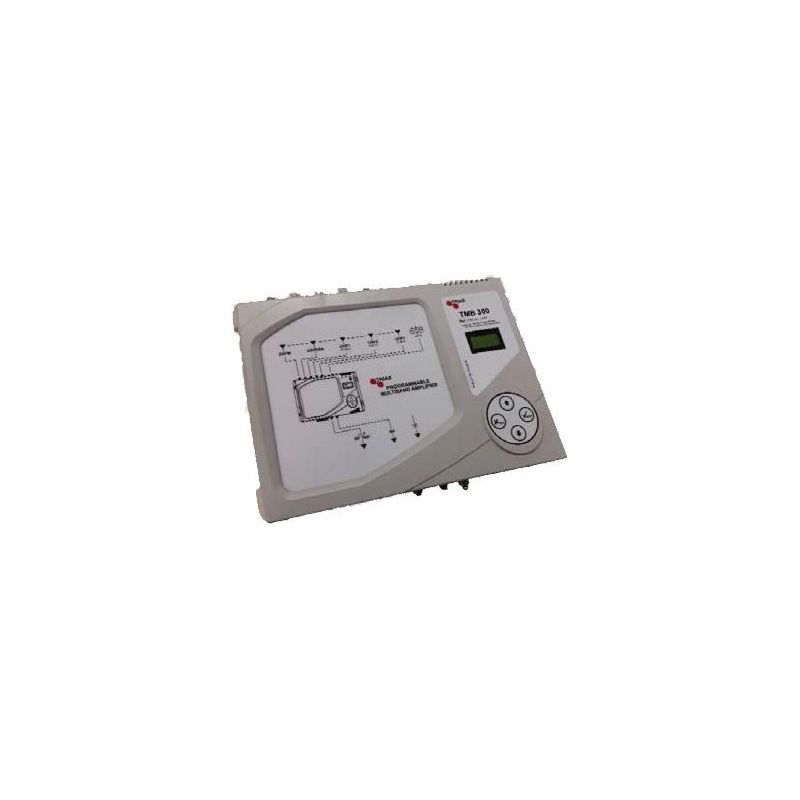

5-input programmable amplifier with LTE filters Triax TMB300

The amplifiers of the TMB family group the functions of filtering, mixing and selective amplification (or broadband, depending on the chosen input) in a single module.

€459.80
Tax included
Reference triax-TMB300
Brand Triax
Quantity
Last items in stock

Free shipping

5-input programmable amplifier with LTE filters Triax TMB300

€459.80

The new programmable multi-band amplifier TMB 300 from TRIAX has all the necessary features to amplify and distribute a large number of terrestrial digital and analog signals in a network.

With a single unit, and by means of selective filters, you can combine and amplify terrestrial analog and digital signals.

The TMB 300 amplifier allows to receive these signals, to equalize their levels and amplify them. It can be used as an independent unit, as well as a part of a headend station where a channel expansion or a frequency modification is necessary.

The TMB 300 amplifier is equipped with 10 filters that can be distributed between the inputs UHF1, UHF2 and UHF3. The fi lters are adjustable and can be tuned in the channel range 21 ... 69. In addition, the frequency band of each fi lter can be programmed from 1 to 7 channels (from 8 to 56 MHz). The individual adjustment in each fi lter of the frequency, bandwidth and output level allows you to align the levels of the selected channels. From the UHF1, UHF2 and UHF3 inputs, 12V or 24V voltage can be supplied to the mast amplifiers.

The signals of BI-FM and BIII-DAB are similarly amplified.

Features

  • 10 adjustable fi lters from 1 to 7 channels
  • Easy to adjust
  • 5 Inputs: BI - FM, BIII - DAB, UHF1, UHF2 and UHF3
  • Switchable UHF gain of 50/40 dB
  • Gain BI - FM = 30 ± 3 dB
  • Gain BIII - DAB = 30 ± 3 dB
  • Output level UHF = 118 dBμV

Specifications

Triax TMB 300
Inputs BI/FM BII/DAB UHF1 UHF2 UHF3
Frequency range (MHz) 47 - 108 174-230 470 - 862 470-862 470-862
Distribution of input filters UHF1-UHF2-UHF3     3 5 2
1 7 2
0 8 2
3 0 7
1 0 9
0 0 10
Gain 33±2 dB 30±3 dB 50/40 ± 3 (Switchable)
Attenuation 20 dB 20 dB 20 (for each filter)
Global regulation of the output level     20 dB
Equalization     -
F.Ruido 9 4 7
Max. Input level 90 dBμV 80 dBμV 75/95 dBμV
Max. output level 118 dBμV 118 dBμV 118 dBμV
Selectivity for f = fp ± 16MHz     >16 dB
Bandwidth per programmable filter     1 ... 7 channels (8 ... 56 MHz)
Amplitude characteristics - 1 channel bandwidth (8 MHz)     Max. 3 dB
Amplitude characteristics - filter bandwidth of 2 .. 7 channels (16 - 56 MHz)     Max. 8 dB
Impedance Input / Output 75 Ohm 75 Ohm 75 Ohm 75 Ohm 75 Ohm
Power supply preamplifiers       0-12-24 / 80 Vdc / mA per input
Working temperature range -5ºC .. + 50ºC
Source feed 230 Vac / 2A
Dimensions 305 x 225 x 60 mm
