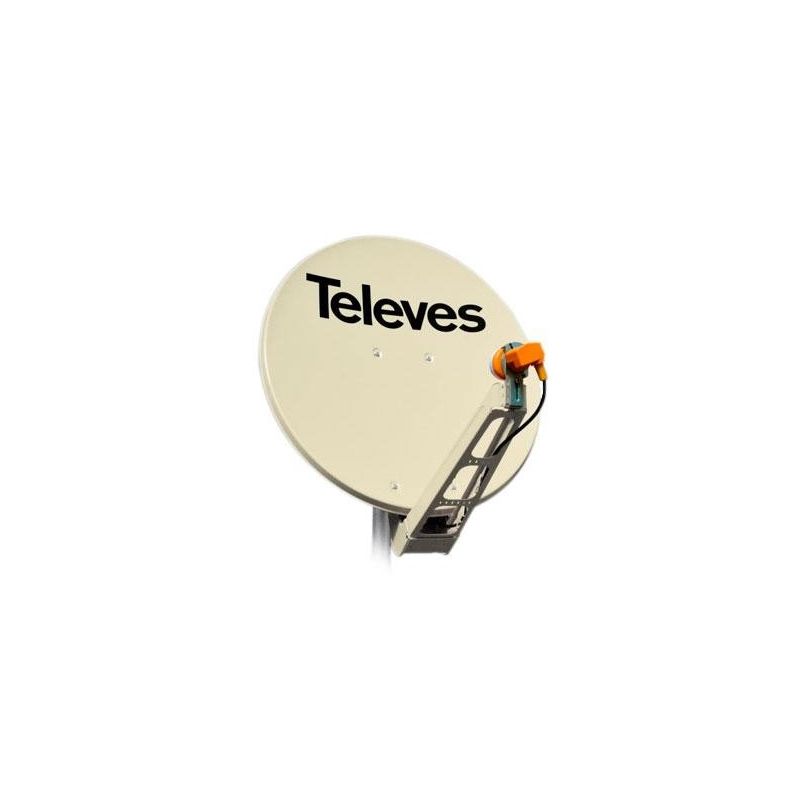

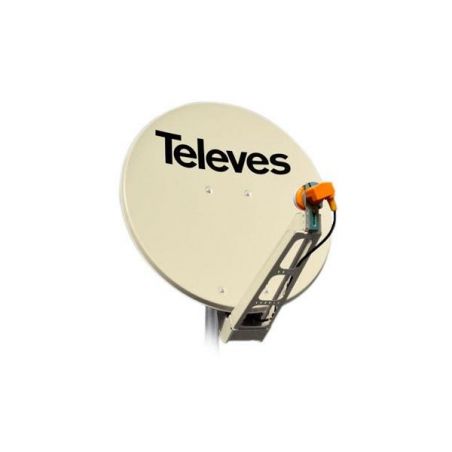

Antenna Parabolic dish QSD of aluminum of 75 cm HQ (High Quality) Televes
Satellite dish QSD Televes offset antenna of 75 cm HQ (High Quality)
€203.95
Tax included
Reference
televes-790204
Brand
Televes
Antenna Parabolic dish QSD of aluminum of 75 cm HQ (High Quality) Televes
€203.95
Satellite dish QSD Televes offset antenna of 75 cm HQ (High Quality)
THE LONG LIFE ALUMINUM DISC.
The new aluminum disc of the QSD range is launched to the market after a rigorous analysis of the requirements that a product designed to resist the toughest and most aggressive environmental conditions (saltpetre, wind, ...), as well as a easy installation.
The German magazine of reference in satellite reception gives the parables QSD the rating of "very good".
Features
- Aluminum disc, with the support of the LNB manufactured in zamak and adjustable in height.
- Folding arm so that it is very easy to assemble.
- Arm and support of the preassembled LNB.
- Reinforced and hot galvanized support.
- Coaxial cable hidden through the arm and secured with tabs.
- Stainless steel screws.
- Certification of the German Certification Body TÜV.
Specifications
| Reference | 790204 | ||
| Dimensions (W × H) | mm | 750 x 850 | |
| Gain | dB | 38.5 | |
| Frequency range | GHz | 10.7...12.75 | |
| Beamwidth (- 3 dB) | º | 2.3 | |
| F/D ratio | 0.6 | ||
| Elevation angle limits | º | 10-80 | |
| Weight (approx) | Kg | 11 | |
| Wind load | 130 Km/h | N | 523.2 |
| 150 Km/h | 719.4 | ||
| Wind conditions | |||
| Antenna height | m | ≤20 | >20 |
| Wind pressure | N/m² | 800 | 1100 |
| Wind speed | Km/h | 130 | 150 |
