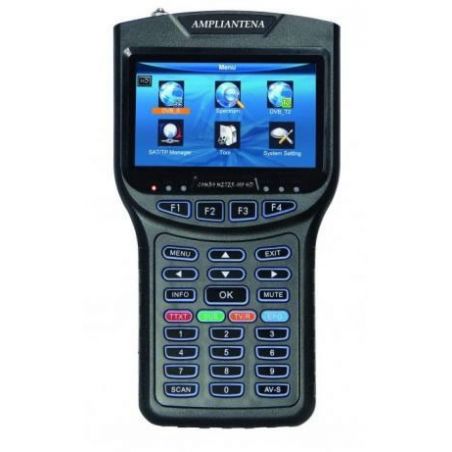

Combo HD Terrestrial + Satellite + Fiber Optics with spectrum analyzer. AMP507
Combo HD Terrestrial + Satellite + Fiber Optics with spectrum analyzer. AMP507
€1,681.90
Tax included
Reference
AMP507
Brand
AMP
Combo HD Terrestrial + Satellite + Fiber Optics with spectrum analyzer. AMP507
€1,681.90
Combo HD Terrestrial + Satellite + Fiber Optics with spectrum analyzer. AMP507
Specifications
| Combo Terrestrial HD + Sat + Fiber Optic with Spectrum Analyzer. AMP507 | |
| Transmission standard | DVB-S / S2, DVB-T / T2 and Fiber Optic power reading |
| DVB-T / T2 INPUT / DEMODULATION | |
| Connector | IEC female 9.5mm, female F |
| Input frequency | 48 a 862 MHz |
| Input signal level | -79,5 dBm (MAX) |
| Antenna power | 5V/12V/17V, Max 100 mA |
| Demodulation | QPSK, 16QAM, 64QAM,256QAM |
| Type of tuning | LCN (on/Off) |
| Measurement values | PWR: Level; CN; BER; MER; ERROR Constellation S / S2 |
| DVB-S / S2 ENTRY / DEMODULATION | |
| Connector | Type F |
| Input frequency | 950 to 2150 MHz |
| Input signal level | -65 to -25 dBm |
| Band Control Switch | 22 KHz |
| LNB power | 13V / 18V, Max 400 mA; SCR, Universal |
| Demodulation | QPSK, 8PSK, 16APSK |
| Symbol Rate | 2 <Rs <45 M band (SCPC / MCPC) |
| Values | PWR; C/N; VER; MER; Constelación S/S2 |
| LCD FEATURES | |
| LCD | TRANSMISSIVE TFT LCD |
| Number of points | 480 (RGB)X272 |
| Active area (W x H) | 98.04x53.86 mm2 |
| AV out/input | |
| Type out / in | HDMI, AV |
| Connector | 3.5 mm Jack |
| Video | CVBS |
| Video out | Up to 1080 |
| Audio | Stereo L/R output |
| AUDIO / VIDEO TREATMENT | |
| Video decompression | MPEG-2 MP@HL, MPEG-1, MPEG-4 ASP@L5 HD, H.264 MP&HP@L4, HW JPEG |
| Resolution rate | PAL 25fps 720*576, NTSC 30fps 720*480. |
| Signal compatibility | Supports Conversions of different formats |
| Video format | 4: 3, 16: 9, By Pan & Scan and mailbox conversion |
| Audio decompression | MPEG-1 Layer I / II, MPEG-2 Layer I / II |
| Audio output mode | Stereo, Mono, R/L |
| DATA SERVICE MODE | |
| Connector | USB |
| Data protocols | USB2.0 interface |
| File management system | NTFS, FAT32, FAT16 |
| File Format | VMA, MP3, MP4, AVI, JPG, JPEG,BMP,IMG |
| MICROPROCESSOR | |
| Microprocessor | NOVATEK |
| Clock Frequency | 500 MHz |
| SDRAM (Dynamic Random Access Memory) | 1Gb DDR3 |
| OPTICAL AND ELECTRICAL CHARACTERISTICS | |
| Type of Optics | InGaAs (indium and gallium arsenide) |
| Operating wavelength (λ) | 800-1700 nm |
| Diameter of photo surface (Ø) | 500 μm |
| Sensitivity (R) | 0.8-0.95 (VE=5v,λ=1310nm) |
| Measuring range | -70~10dbm |
| FEEDING | |
| Lithium battery | 7.4V/3000 mAh |
| Supply voltage |
OUTPUT: DC12V/1.5A, INPUT:100-240 Vac 50/60Hz |
| Consumption | Max. 10W |
| PHYSICAL CHARACTERISTICS | |
| Dimensions (WxDxH) | 9.5x15.5x4.5 |
| Net weight | 0.5 Kg |
