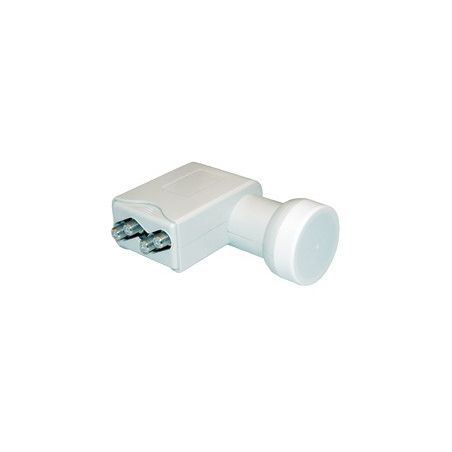

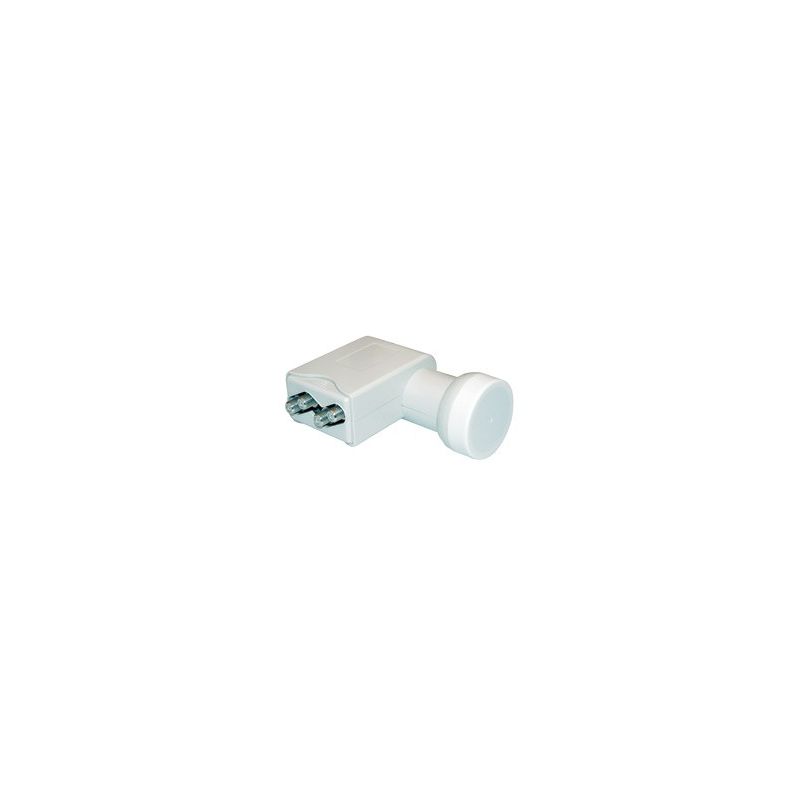

Triax 0.3 dB 4 outputs LNB universal Quad

TQD 006 Universal Quad. Full KU band coverage for analog and digital reception. Low Noise figure. High gain and excellent cross polarization isolation. High output level and low power consumption. Flat variation of the gain. For 2 or 4 decoders. Sliding lid available in 2 colors. Individually packaged

€44.17
Tax included
Reference triax-304442
Brand Triax
Quantity
Last items in stock

Free shipping
Triax 0.3 dB 4 salidas LNB universal Quad

Triax 0.3 dB 4 outputs LNB universal Quad

€44.17

TQD 006 Universal Quad.

Features

  • Full KU band coverage for analog and digital reception.
  • Low Noise figure.
  • High gain and excellent cross polarization isolation.
  • High output level and low power consumption.
  • Flat variation of the gain.
  • For 2 or 4 decoders.
  • Sliding lid available in 2 colors.
  • Individually packaged

Specifications

ORDER INFORMATION
EAN Number 5702663044425
CHARACTERISTICS
Feedhorn diameter Ø 40 mm
Feedhorn F/D @ 11.7 0.615
Frequency stability (-40 ~ +60 °C) ± 2.1:1 MHz
Phase noise @ room temperature - 100 kHz - 95 dBc/Hz
Phase noise @ room temperature - 10 kHz - 75 dBc/Hz
Phase noise @ room temperature - 1 kHz - 50 dBc/Hz
Spurious level - 60 (max.) dBm
Switching high band 22 (± 4) kHz
Switching low band 0.0 kHz
Image rejection (min.) 40 dB
LNB type Quad
FREQUENCY
L.O. frequency high band 10,60 GHz
L.O. frequency low band 9,75 GHz
Output frequency high band 1100 - 2150 MHz
Output frequency low band 950 - 1950 MHz
Input frequency high band 11.7 - 12.75 GHz
Input frequency low band 10.7 - 11.7 GHz
GAIN
Conversion gain (max.) 64 dB
Conversion gain (min. at room temperature) 50 dB
Gain flatness (across 26 MHz segm) ± 1.0 (typ.) dB
Gain variation (over operating band) 5 p-p (typ.)
Noise figure max. 0.3 dB
ISOLATION
Cross polarization isolation 25 typ. dB
OPERATIONAL
Operating temperature range -40 ~ +60 °C
Operating voltage horizontal 15.5 ~ 21.0 V/DC
Operating voltage vertical 10.5 ~ 14.5 V/DC
DC Current consumption 180 mA
CONNECTORS
Connector Type F-female
MECHANICAL
Colour RAL 7035
Product Depth 97 mm
Packaging Depth 0,145 m
Packaging Height 0,065 m
Total Weight 0,258 kg
Packaging Width 0,090 m
Max. depth incl. feedhorn 135 mm
Net Weight 0,216 kg
Packing QTY 50
Tara Weight 0,042 kg
Packaging Volume 0,001 m3
Product Width 59 mm
Product Height 137 mm
