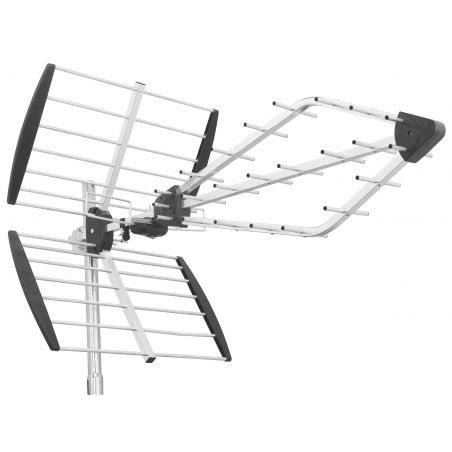

Triax VIP445 Antenna UHF YAGI triple structure with LTE filter for C21 / C60 (G- 17.5 dB)
UHF antenna Design of three tablecloths. Channels 21 to 60 (Rejection of LTE). Gain (dBi): 17.5 dB. Mounting H / V. Front / rear protection:> 28 dB. Horizontal aperture angle a - 3 dB: ± 16 °. Lift adjustment. Pre-assembled antenna. LTE protection.
€60.20
Tax included
Reference
triax-369105
Brand
Triax
Triax VIP445 Antenna UHF YAGI triple structure with LTE filter for C21 / C60 (G- 17.5 dB)
€60.20
UHF antenna with LTE Triax VIP445 filter for C21 / C60 (G- 17.5 dB)
Features
- UHF antenna Design of three tablecloths.
- Channels 21 to 60 (Rejection of LTE).
- Gain (dBi): 17.5 dB.
- Mounting H / V.
- Front / rear protection:> 28 dB.
- Horizontal aperture angle a - 3 dB: ± 16 °.
- Elevation adjustment.
- Pre-assembled antenna
- LTE protection.
Specifications
| INFORMATIONS SUR LA COMMANDE | |
|---|---|
| Code EAN | 3700113429367 |
| CARACTÉRISTIQUES | |
| Type | VIP 445 |
| BANDE DE FRÉQUENCES | |
| Bande | B IV/V UHF |
| Canaux | 21...60 |
| LTE protection | 800 |
| Bande passante UHF | 470...790 MHz |
| GAIN | |
| Gain @ 474 MHz (canal 21) | 12.5 Typ dBi |
| Gain @ 538 MHz (canal 29) | 14.0 Typ dBi |
| Gain @ 730 MHz (canal 53) | 17.5 Typ dBi |
| Gain @ 786 MHz (canal 60) | 16.5 Typ dBi |
| Gain @ 602 MHz (Ch. 37) | 16.0 Typ dBi |
| CARACTÉRISTIQUES ÉLECTRIQUES | |
| Rapport avant / arrière - horizontal | > 28 dB |
| Impédance | 75 Ω |
| CONNECTEURS | |
| Type de Connecteur | F-femelle |
| MÉCANIQUE | |
| Matériau | Aluminum |
| Angle d'ouverture horizontal | ± 16 ° |
| Design | Dipole équipé d'un filtre LTE |
| Poids brut | 2,100 Kg |
| Longeur | 1040 mm |
| Poids net | 2,100 kg |
| Quantité par emballage | 1 |
| Remarques | Antenne prémontée. Montage vertical ou horizontal. |
| Largeur | 540 mm |
| Charge au vent | 65 N |
| Hauteur | 650 mm |
