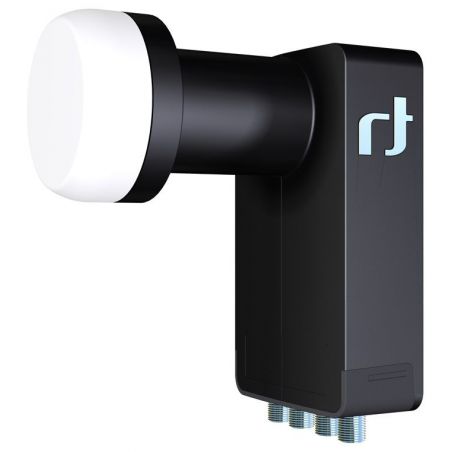

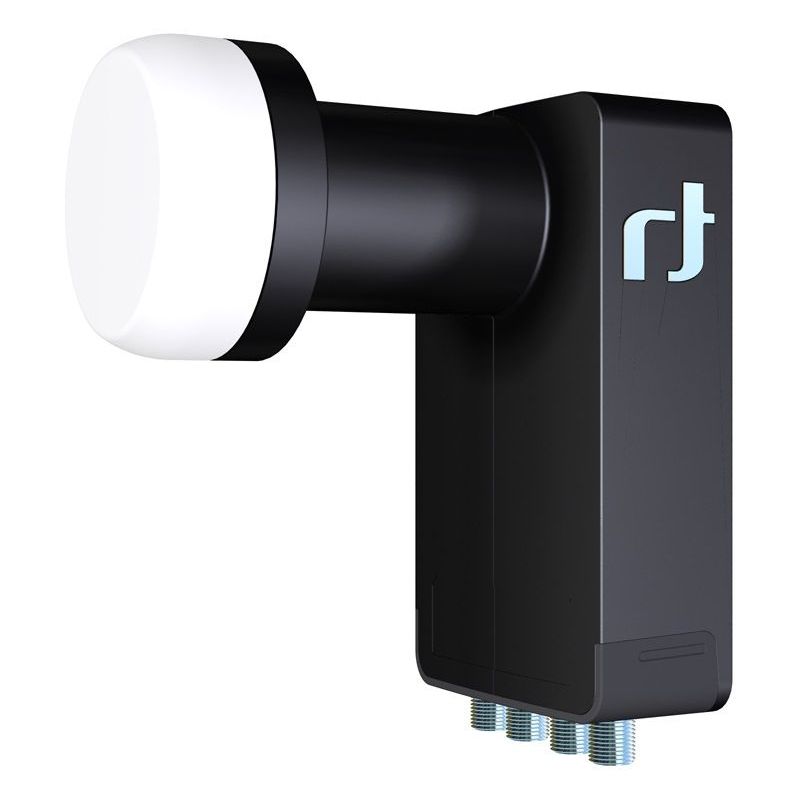

LNB Inverto Black Ultra Quad HGLN 40mm with built-in Multiswitch LTE 0.2dB

This LNB is a high performance product  addressing the need for superior reception under the edges of the satellite footprint. Thanks to its novel front end design and superior components, this LNB provides higher conversion gain yet with lowest noise figure and best phase noise performance.

€26.62
Tax included
Reference inverto-3310
Brand Inverto
Quantity
Available Now

Free shipping
Inverto ultra 0.2 dB 4 salidas LNB universal Quad

LNB Inverto Black Ultra Quad HGLN 40mm with built-in Multiswitch LTE 0.2dB

€26.62

This LNB is a high performance product  addressing the need for superior reception under the edges of the satellite footprint. Thanks to its novel front end design and superior components, this LNB provides higher conversion gain yet with lowest noise figure and best phase noise performance. The combination of higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering spurious. All in all, this LNB provides a leap in the overall reception performance compared with standard LNBs. The LNB enables the reception of signals from one satellite and its distribution to maximum four Set Top Boxes with Single Tuner (or two STBs with Twin Tuner) and is ready for High Definition transmissions. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.

Features

  • Superior Phase Noise performance, DVB-S2 (HDTV) compliant
  • Superior Noise Figure
  • Extremely high Cross Polarization Isolation
  • Very low Spurious Levels
  • Higher Conversion Gain
  • Ultimate Reliability

Specifications

Inverto IDLB-QUDL40-ULTRA-OPP
Low Band Input Frequency Range 10.7~11.7 GHz
Low Band Output Frequency Range 950~1950 MH
LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7~12.75 GHz
High Band Output Frequency Range 1100~2150 MHz
LO Frequency 10.6 GHz
Noise Figure 0.2dB typ. (0.7dB max.)
LO Initial Accuracy +/- 1.0 MHz max.
LO Temperature Drift +/- 3.0 MHz max.
LO Phase Noise @ 10K Hz -90 dBc/Hz max.
Conversion Gain 60 dB min.
Gain Ripple +/- 0.75 dB/27MHz
Gain Variation +/- 4 dB
Image Rejection 40 dB min.
1 dB Compression Point (O/P) 0.0 dBm min.
Cross talk 23 dB min.
Control Signals Ca [ V ] 11.0~14.0 V
Control Signals Cb [ H ] 16.0~20.0 V
Control Signals Cc [Band switching] 22 KHz +/- 4 KHz 0.4 V – 0.8 V pp
Output VSWR 2.0 : 1
Radiated Interference -60 dBm max.
DC Power 200 mA max. @ 11 – 20V
Working Temperature -30~+60 °C
Output Impedance (connect to STB) 75 Ω
Output connector F-type (female)
Weight 344 g
