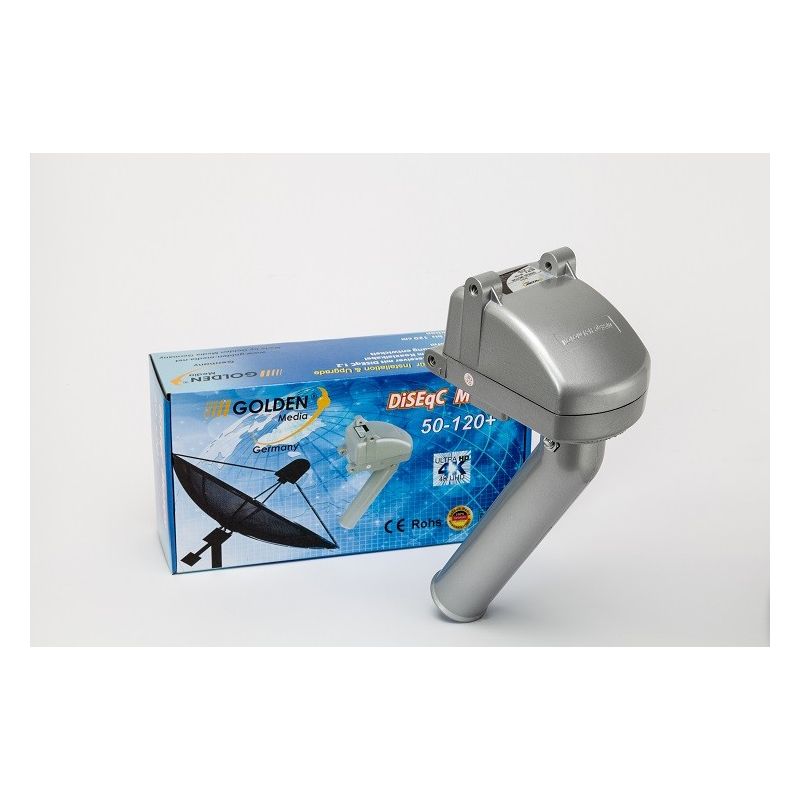

DiSEqC Golden Media Motor 50-120 + High Quality Steel body

New DiSEqC Golden Media high quality motor with metal body and high resistance supports antennas up to 120cm, low turning noise.

€64.13
Tax included
Reference gm-motor120
Brand Golden Media
Quantity
Out-of-Stock

Free shipping

New DiSEqC Golden Media high quality motor with metal body and high resistance supports antennas up to 120cm, low turning noise.

Features

  • Simple installation and update
  • Specially designed for the receiver with DiSEqC 1.2
  • Everything is controlled by a single coaxial cable
  • High efficiency designed
  • Compact design and metal body
  • Low noise level
  • For satellite dishes up to 120 cm
  • Goto-X function
  • USALS

Specifications

Protocol DiSEqC 1.2
Compatible Receiver DiSEqC 1.2 Receiver
Antenna Size 120 cm Max.
Speed 1. 9° /sec(at 13V);2.5°/sec(at 18V)
Azimuth Angle 75°   East ~75°   West (150°Max.) Adjustable
Elevation Angle 25°~75°
Tube for Antenna Φ50x200L m/Φ55x180Lmm / Φ42x150Lmm
Diameter of Mounting pole Φ35~65 mm
Input Voltage 13 / 18 V DC
Output Voltage 13 / 18 V DC (according to input)
Power Consumption 50 mA(Standby) / 200mA(Normal) / 350mA(Max.)
Satellite Position 100 positions
Goto 0 Position Function Yes (Goto 0°)
Recalculation Function Yes
Goto X Function Yes
Manual Button Two (East / West)
LED Indicator Yes (2 Colors)
Limit Protection Programmable Software Limit
Current Limit
Positioning Sensor High Resolution Hall Effect Sensor
Weight(Gross) 3.5 kg / 3.9 kg/ 3.1 kg (Type 1/2/3)
Dimension 330x170x110mm3 (Gross)
