SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 1500 AND id_lang = 1 Final Switch Multiswitch 4 Triax + polarities land to feed 16 recipients included
Multiswitch Conmutador Final triax TMS 5x16P 4 polaridades + terrestre para 16 receptores alimentacion
search
  • Multiswitch Conmutador Final triax TMS 5x16P 4 polaridades + terrestre para 16 receptores alimentacion

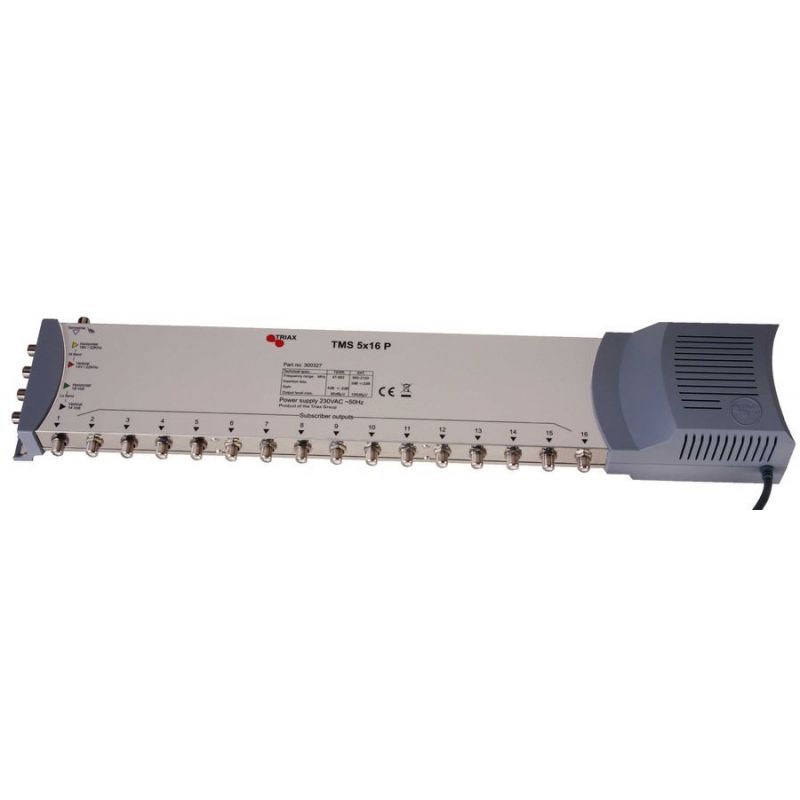

Triax TMS 5x16P Multiswitch End Switch 4 polarities + terrestrial. Power supply included. 5i/16o

Triax TMS 5X16P is a 16-way switch for distributing the 2-position satellite IF signal. The switch can be used individually in efficient systems and at low cost. It has a built-in power supply for LNB's. The TMS 5X16P supports DiSEqC

€314.49
Tax included
Reference triax-300327
Brand Triax
Quantity
In Stock

Free shipping
Multiswitch Conmutador Final triax TMS 5x16P 4 polaridades + terrestre para 16 receptores alimentacion

Triax TMS 5x16P Multiswitch End Switch 4 polarities + terrestrial. Power supply included. 5i/16o

€314.49

Triax TMS 5X16P is a 16-way switch for the distribution of the 2-position satellite IF signal.

Features

  • The switch can be used individually in efficient systems and at low cost.
  • The unit has a built-in power supply for LNB's.
  • The TMS 5X16P supports DiSEqC

The unit has a built-in power supply for the LNB's or the TMS 55 amplifier.

The TRIAX TMS series of switches have been designed to meet the requirements of our customers. For easy installation, all entries are marked with identical colors to our Triax multicable.

All switches have a built-in VHF / UHF loop-in, for cases where the signal comes from the air or from a cable system.

Specifications

ORDER INFORMATION
EAN Number 5702663003279
CHARACTERISTICS
Max. output level SAT @ -35 dB IMD3 100 dBµV
Max. output level TER @ -60dB IMD3 85 dBµV
Switch commands 13/18 V, 0/22 kHz
FREQUENCY
Frequency range TER 47-862 MHz
Frequency range SAT 950-2150 MHz
GAIN
Gain - TER [47-862 MHz] 4.0 dB
ISOLATION
Isolation SAT to TER 22 dB
Isolation TER to SAT 22 dB
Isolation cross polarisation H/V 25 dB
Isolation out-out SAT 35 dB
Isolation out-out TER 28 dB
RETURN LOSS
Return loss SAT inputs 10 dB
Return loss SAT outputs 8 dB
Return loss TER inputs 10 dB
Return loss TER outputs 8 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Max. current pass per F-connector 600 mA
Temperature range -20...+55 °C
CONNECTORS
Connector Type F-female
Number of inputs 5
Number of trunk inputs 4 SAT, 1 TER
Subscriber outputs 16
Colourcoding of IF and TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow
MECHANICAL
Product Height 71 mm
Product Depth 103 mm
Product Width 559 mm
Packing QTY 1
Packaging Height 0.550 m
Packaging Width 1.20 m
Packaging Depth 5.50 m
Packaging Volume 3.63 m3
Net Weight 0.570 kg
Tara Weight 0.200 kg
Total Weight 0.770 kg
