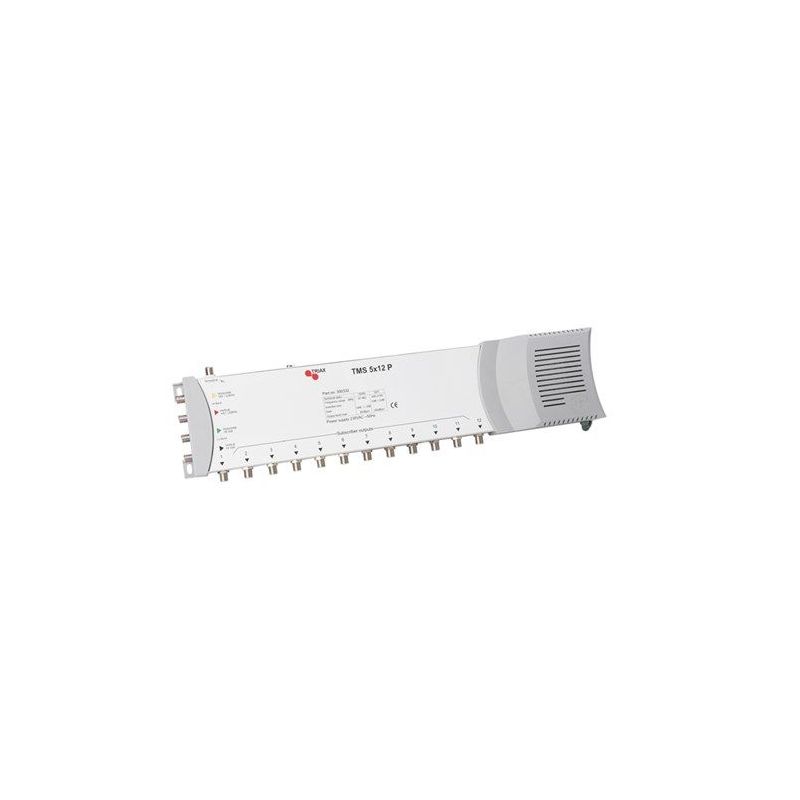

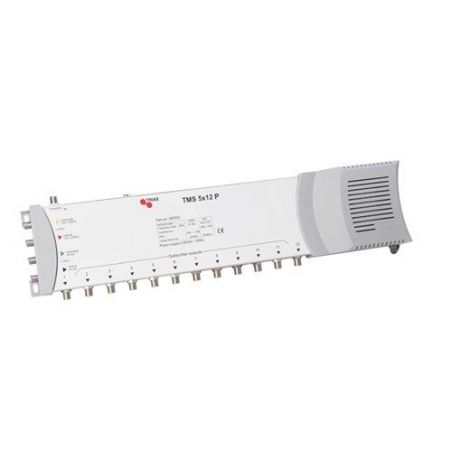

Triax TMS 5x12P Multiswitch End Switch 4 polarities + terrestrial. Power supply included. 5i/12o
Triax TMS 5X12P is a 12-way switch for distributing the 2-position satellite IF signal. The switch can be used individually in efficient systems and at low cost. The unit has a built-in power supply for LNB's. The TMS 5X12P supports DiSEqC
€239.29
Tax included
Reference
triax-300322
Brand
Triax
Triax TMS 5x12P Multiswitch End Switch 4 polarities + terrestrial. Power supply included. 5i/12o
€239.29
MS 5x12P. Multiswitches 4 SAT + Terrestrial polarities for 12 users.
The TMS 5XP series from Triax with integrated power supply is the right choice for a satellite position in small distribution networks.
Integrated power supply.
All switches have a built-in VHF / UHF loop-in, for cases where the signal comes from the air or from a cable system.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663003224 |
| CHARACTERISTICS | |
| Max. output level SAT @ -35 dB IMD3 | 100 dBµV |
| Max. output level TER @ -60dB IMD3 | 85 dBµV |
| Switch commands | 13/18 V, 0/22 kHz |
| FREQUENCY | |
| Frequency range SAT | 950-2150 MHz |
| Frequency range TER | 47-862 MHz |
| GAIN | |
| Gain - TER [47-862 MHz] | 0.0 dB |
| ISOLATION | |
| Isolation cross polarisation H/V | 25 dB |
| Isolation out-out SAT | 35 dB |
| Isolation out-out TER | 28 dB |
| Isolation SAT to TER | 22 dB |
| Isolation TER to SAT | 22 dB |
| RETURN LOSS | |
| Return loss SAT inputs | 11 dB |
| Return loss SAT outputs | 8 dB |
| Return loss TER inputs | 11 dB |
| Return loss TER outputs | 8 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Max. current pass per F-connector | 600 mA |
| Temperature range | -20...+55 °C |
| CONNECTORS | |
| Colourcoding of IF and TER inputs | VL=Black, VH=Red, HL=Green, HH=Yellow |
| Connector Type | F-female |
| Number of trunk inputs | 4 SAT, 1 TER |
| Subscriber outputs | 12 |
| MECHANICAL | |
| Product Depth | 103 mm |
| Packaging Depth | 0,500 m |
| Packaging Height | 0,085 m |
| Total Weight | 1,728 kg |
| Packaging Width | 0,140 m |
| Net Weight | 1,490 kg |
| Packing QTY | 1 |
| Tara Weight | 0,238 kg |
| Packaging Volume | 0,006 m3 |
| Product Width | 459 mm |
| Product Height | 71 mm |
