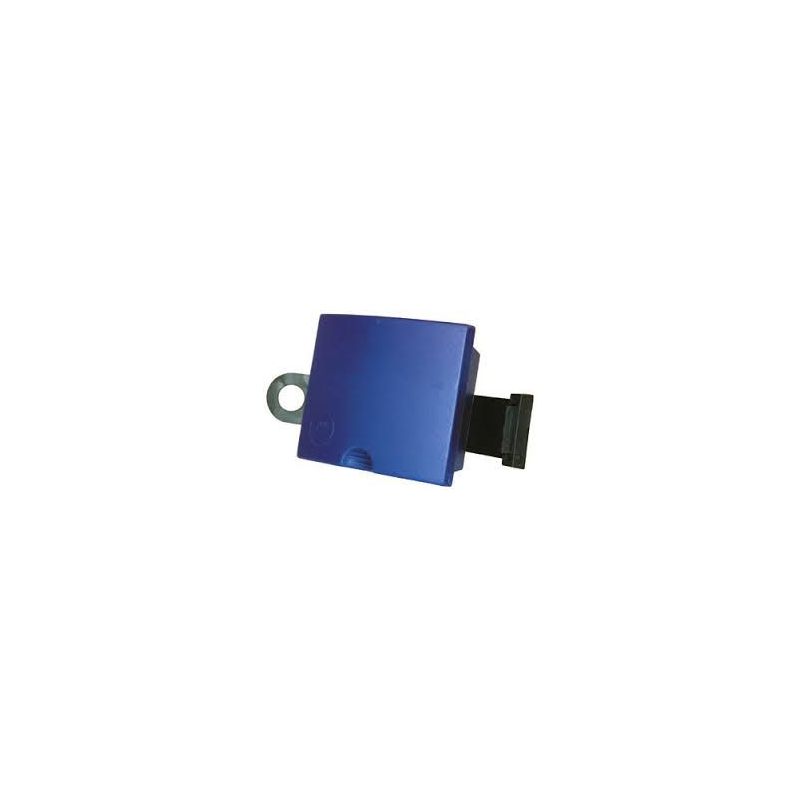

Triax MFA 2640 LTE TDT Mast Amplifier 40 dB High gain / low noise

Mast preamplifier 2 inputs (BI-BII-BIII / UHF), 1 output. Amplifier for mast mounting, powered by the coaxial down cable, which covers the FM, DAB, VHF and UHF bands. Its low noise level makes these amplifiers ideal for installations where the signal levels, analog or digital, are very poor.

€35.09
Tax included
Reference triax-340346
Brand Triax
Quantity
Out-of-Stock

Free shipping

Mast preamplifier 2 inputs (BI-BII-BIII / UHF), 1 output.

Amplifier for mast mounting, powered by the coaxial down cable, which covers the FM, DAB, VHF and UHF bands.

Its low noise level makes these amplifiers ideal for installations where the signal levels, analog or digital, are very poor.

The amplifier cuts channels 61-69, which belong to the frequencies 790 - 862 MHz assigned to mobile communications operators (LTE / 4G).

Features

  • Mast amplifier 2 inputs: BIII / UHF.
  • Gain: BIII (30dB), UHF (40 dB).
  • Output level: 105 dBμV.
  • F female connectors.
  • Waterproof housing.
  • RF armored and CE approved (EN 50083
INFORMATION
EAN number 5702663403468
CHARACTERISTICS
Max output level @ -60 dB IMD 108 dBµV
FREQUENCY RANGE
[Input 1] - channels 5...12 +FM
[Input 2] - channels 21...69
GAIN
[Input 1] - gain 21 dB
[Input 1] - noise figure 2.8 dB
[Input 2] - gain 42 dB
[Input 2] - noise figure 2.1 dB
ELECTRICAL DATA
Impedance 75 Ω
OPERATIONAL
DC Working voltage 12...24 VDC
CONNECTORS
Connector Type F-female
Number of departures 1
MECHANIC
Color RAL 7016
Total Weight 0,232 kg
Net weight 0,232 kg
