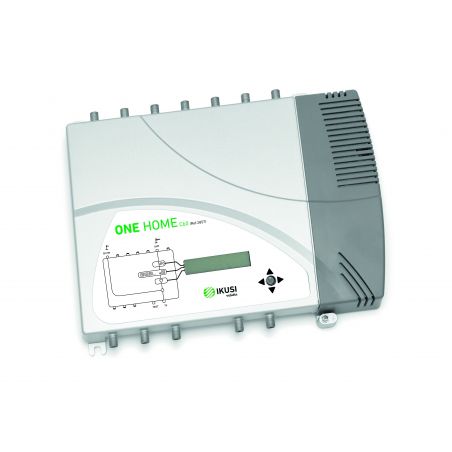

Ikusi ONEHOME-C60 Programmable centre for Terrestrial amplification (UHF 470-790 MHz)
Programmable terrestrial filtering header. Domestic amplifier with 10 channel filters. (UHF 470-790 MHz). Adapted to the first and second digital dividend. Auto installation function. 1 UHF input, 1 BI/FM input, 10 UHF tunable filters. Silent as no fan needed.
€305.53
Tax included
Reference
ikusi-2857
Brand
Ikusi
Ikusi ONEHOME-C60 Programmable centre for Terrestrial amplification (UHF 470-790 MHz)
€305.53
Features
- ONE HOME models is a programmable amplification headend designed to selectively filter analogue and digital UHF channels.
- Suitable for single-family and collective dwellings, they are the ideal solution for managing signals of different frequencies and bandwidths.
- Self-installation function.
- 10 tuneable UHF filters with the capacity to process 1 to 5 channels each.
- Terrestrial inputs (BI-FM and UHF).
- Replaceable power supply.
Specifications
| MODEL | REF. | ONEHOME Series | |||||
| ONEHOME-C60 | 2857 | Frequency range (MHz) | 47 - 108 | 470 - 790 | |||
| ONEHOME-C48 | 2858 | 470 - 694 | |||||
| Inputs | 1 BI/FM |
1 UHF |
|||||
| Input configuration Number of programmable UHF filters per input |
— | 10 | 0 | 0 | |||
| 9 | 0 | 1 | |||||
| 7 | 0 | 3 | |||||
| 2 | 5 | 3 | |||||
| 2 | 7 | 1 | |||||
| Gain | dB | -5 | 20/40 switchable |
||||
| Gain adjustment | dB | — | 30 | ||||
| Noise figure | dB | — | < 6 | ||||
| Optimum input margin | dBμV | — | 50 - 100 | ||||
| Return losses | dB | > 10 | > 10 | ||||
| Selectivity ( ± 10 MHz of channel ends) | dB | — | 10 | ||||
| Output level | dBμV | — | 113 *1 | ||||
| Output level adjustment | dB | — | 20 | ||||
| AGC tolerance | dB | — | ± 1 | ||||
| Switchable preamplifier voltage | V | — | off-12-24 | ||||
| Maximum preamplifier voltage | mA | — | 100 | ||||
| Test output | dB | -30 | |||||
| Mains voltage | VAC | 110 - 240 | |||||
| Consumption | W | 10 | |||||
| Operating temperature | ºC | -5 ... +50 | |||||
| Dimensions | mm | 300 x 250 x 40 | |||||
Downloads
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Programmable terrestrial filtering header. Domestic amplifier with 10 channel filters. (UHF 470-790 MHz). Adapted to the first and second digital dividend. Auto installation function. 1 UHF input, 1 BI/FM input, 10 UHF tunable filters. Silent as no fan needed.
