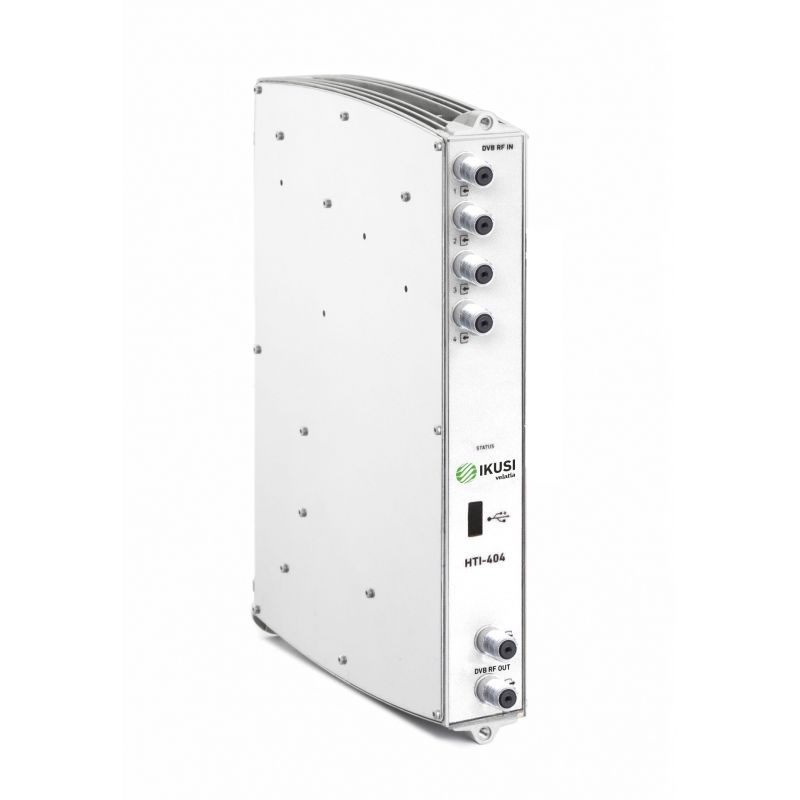

Ikusi HTI-404 High Density Universal transmodulator

DVB-T/T2/S/S2/C to DVB-T/C, IPTV Transmodulator. It receives contents from 4 DVB-T/T2, DVB-S/S2 or DVB-C transponders/muxes, decrypts and broadcasts them in 4 DVB-T or DVB-C or on IPTV output channels.

€2,601.50
Tax included
Reference ikusi-3864
Brand Ikusi
Quantity
Available in 24/48h

Free shipping

Ikusi HTI-404 High Density Universal transmodulator

€2,601.50

Features

  • Versatile transmodulation of DVB-T/T2, DVB-S/S2 and DVB-C channels to DVB-T/DVB-C channels.
  • The HTI-404 module can receive 4 DVB-T/T2, DVB-S/S2 or DVB-C muxes and broadcasts them in 4 DVB-T or DVB-C output channels.
  • One module acts as the “master” to ensure the configuration (remote or local through PC) is carried out at the complete headend level, through the IKUNET bus and not module by module.
  • It allows a future increase in services to be foreseen in order for the televisions to have them already on their lists, avoiding the need for  retuning.
  • It allows a video service to be sent with several different languages without taking up more space than that corresponding to an RF channel. The
  • television shows “a programme” for each language, avoiding the need for users to have to choose their “language” on the television remote control.
  • It is compatible with the PC application: “IKUSI HEADEND DISCOVERY” This instrument provides installers with a tool that allows them to detect the headend’s modules without having to modify the PC’s network configuration. (This can be downloaded from www.ikusi.tv).
  • It allows channel lineups to be created and managed remotely, ensuring that the lineup is completely customisable without having to work in-situ.
  • The four DVB-T/C output channels can be distributed onto any part of the band.
  • Total control of the multiswitch. Fitted with DiSEqC.
  • USB-300 to ethernet adapter for local or remote configuration.

Specifications

REF. 3864
Inputs 4
Input frequency range MHz DVB-T/T2 :  47-862
DVB-S/S2 :  950 - 2150
DVB-C :       47-862
Input level dBμV 40 - 92
Symbol rate MS/s DVB-S:      1...45
DVB-S2:    1... 45
DVB-C:      1... 6.952
Maximum input current   100mA in 2,3 and 4 connectors.
250mA in 1 connector
Fitted with DiSEqC (v. 1.1)   No limit on number of polarities
TS Procesing
PSI/SI adaptation   Generating and inserting tables PAT, PMT, CAT, SDT, BAT, NIT, TDT, TOT, EIT
NIT adaptation   Yes (automatically generated)
SDT adaptation   Yes (configurable input name)
LCN, TDT, TOT management   Yes
Cloned services   Yes, from any input to any output
Outputs
Number of outputs   4 channels
DVB-T / DVB-C (47 - 862 MHz)
MER dB > 40
Output level dBμV 85
Maximum output bit rate DVB-T Mbps 31,7
Operation modes DVB-T   2K / 8K
Output bandwidth DVB-T MHz 6 / 7 / 8
Modulation formats DVB-C   16 QAM / 32 QAM / 64 QAM /128 QAM / 256 QAM
Maximum output bit rate DVB-C Mbps 53
Adjustable output level dB -15
Symbol rate DVB-C MS/s 3 ... 7.2
Output loop-through loss dB 1,1
General
Configuration   PC. Interface web
Ikusi Headend Discovery (v1.8.5)
Management interface   USB 2.0 Host frontal
Supply voltage VDC +24
Operating temperature ºC 0... +45
Consumption A 0,67
Dimensions mm 230 x 195 x 32

Downloads

manual

data sheet
