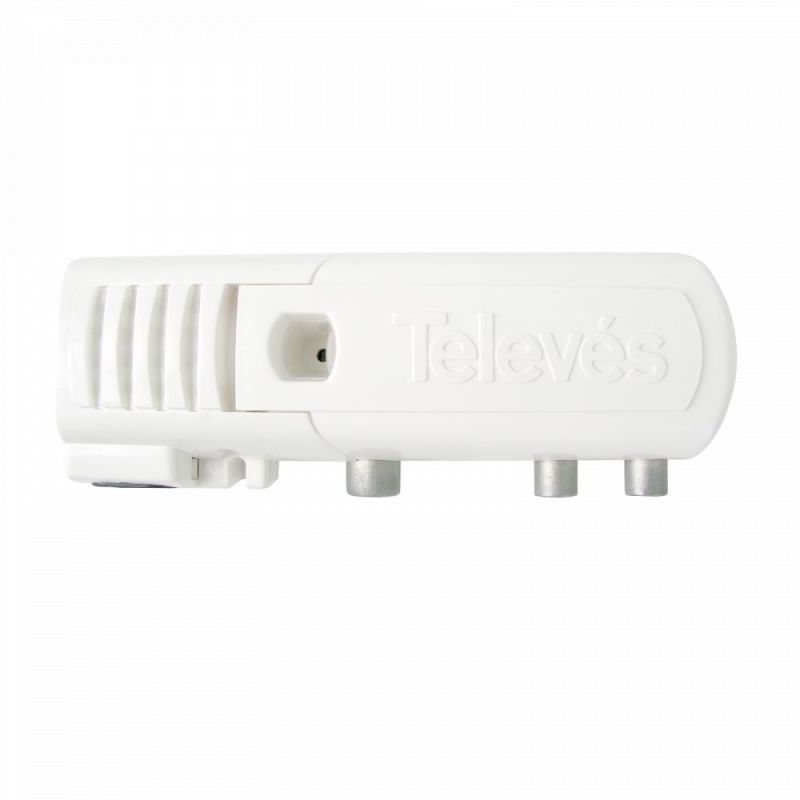

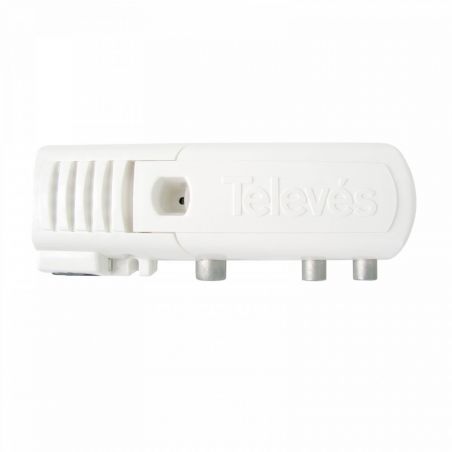

Housing Amplifier 1e/2s "CEI" 47...694MHz G 22dB Vs 104dBµV LTE700/5G Televes

Domestic amplifier with 2 outputs to extend the terrestrial television domestic network. Equipped with LTE700/5G filtering.

€50.24
Tax included
Reference televes-552120
Brand Televes
Quantity
Available Now

Free shipping

Housing Amplifier 1e/2s "CEI" 47...694MHz G 22dB Vs 104dBµV LTE700/5G Televes

€50.24

"IEC" domestic amplifier

2 outputs: VHF/UHF - LTE700 Ready

Domestic amplifier with 2 outputs to extend the terrestrial television domestic network.

Equipped with LTE700/5G filtering.

Stands out for

  • Discreet and restrained design
  • High-performance integrated switching power supply: reduced consumption (40% less than a standard amplifier)
  • Fully automated manufacturing and subjected to rigorous quality controls

Features

  • Manual gain control, protected by a hinged lid
  • Screw on the wall
  • "CEI/IEC" connectors

Specifications

Outputs 2
Frequency range MHz 47...694
Gain dB 22
Gain regulation margin dB 0 ... 15
Output level EN50083(1) dBμV 111
DIN45004B 104
Noise figure dB 6
Mains tension/frequency V~/Hz 193-253 / 50-60
AC power consumption W/mA 2,3 / 23
Operating temperature range ºC -5 ... +45
Protection index IP 20

(1) IMD3 2CH -35dB
