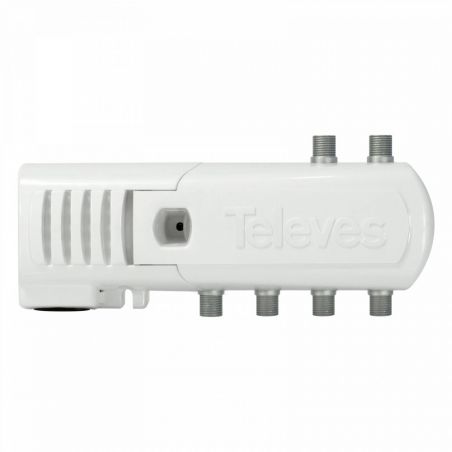

"F" domestic amplifier 5 outputs (4+TV): VHF/UHF - LTE700/5G Televes
Domestic amplifier with 5 outputs (4+TV) to extend the terrestrial television domestic network. The TV output provides a lower gain for direct connection to the television set (no outlet installation). Equipped with LTE700/5G filtering.
€58.66
Tax included
Reference
televes-552320
Brand
Televes
"F" domestic amplifier 5 outputs (4+TV): VHF/UHF - LTE700/5G Televes
€58.66
Amplia gama de amplificadores de vivienda para aplicaciones de MATV, caracterizados por su potencia de salida y su bajo consumo.
- Fabricación totalmente automatizada.
- 50% menos de consumo que un amplificador estándar.
- Baja figura de ruido.
- Ganancia ajustable.
- Hasta 6 salidas.
- Preparado para LTE.
Especificaciones
| Referencia | 552340 (5523) | |||||
| Entradas/Salidas | 1 / S1-S2-S3-S4-TV | |||||
| Rango de frecuencias | MHz | 47-790 | ||||
| Ganancia | dB | 16 (S1-S2-S3-S4) | ||||
| 11 (TV) | ||||||
| Regulación ganancia | dB | 12 | ||||
| Nivel de salida (DIN 45004-B) | dBµV | 102 | ||||
| Rechazo entre salidas | dB | >25 | ||||
| Figura de ruido | dB | <5 | ||||
| Tensión de alimentación | Vac | 230±10% | ||||
| Consumo | W | 2 | ||||
| Indice de protección | IP | 20 | ||||
| Dimensiones | mm | 145x60x35 | ||||
| Tipo de conectores | F | |||||
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Domestic amplifier with 5 outputs (4+TV) to extend the terrestrial television domestic network. The TV output provides a lower gain for direct connection to the television set (no outlet installation). Equipped with LTE700/5G filtering.
