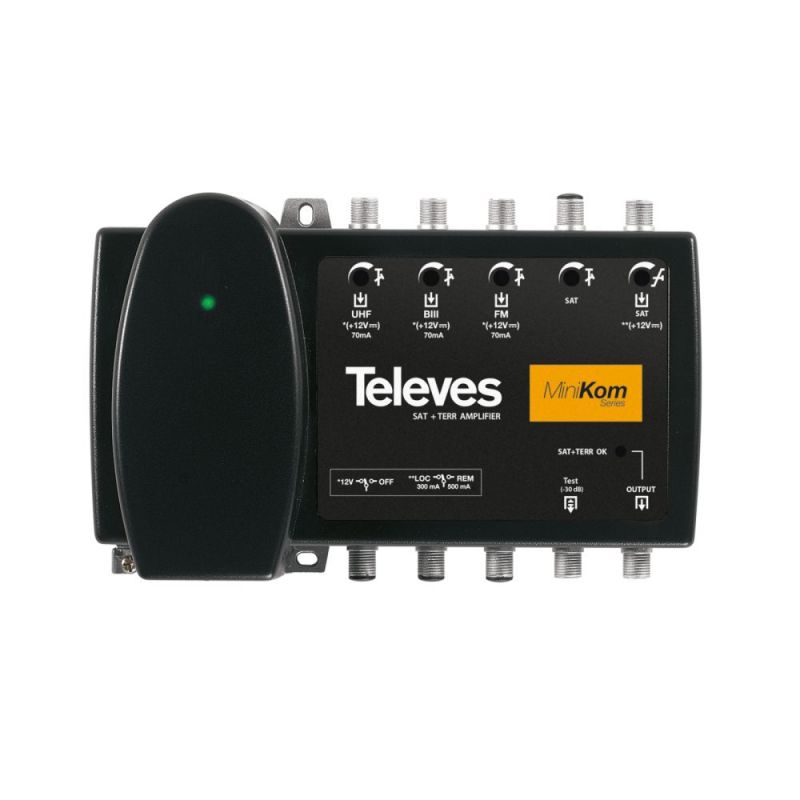

Central broadband MiniKom MATV + FI 4 inputs "F" FM-BIII-UHF-SAT LTE700/5G Televes

4-input multiband amplifier (FM-BIII-UHF-SAT) for SMATV systems. Separate amplification guarantees the absence of intermodulation among inputs and independent attenuators. Separate amplification enhance the output level without causing any interference among bands. PIN-diode technology gain attenuators on each input (0 dB-20 dB)

€184.03
Tax included
Reference televes-539620
Brand Televes
Quantity
Available Now

Free shipping

Central broadband MiniKom MATV + FI 4 inputs "F" FM-BIII-UHF-SAT LTE700/5G Televes

€184.03

MiniKom F broadband multiband amplifier

4 inputs: FM-BIII-UHF-SAT

4-input multiband amplifier (FM-BIII-UHF-SAT) for SMATV systems. Separate amplification guarantees the absence of intermodulation among inputs and independent attenuators.

Highlights

  • Separate amplification enhance the output level without causing any interference among bands
  • PIN-diode technology gain attenuators on each input (0 dB-20 dB)
  • High output level
  • High-screening Zamak chassis

Main features

  • “F” connectors
  • SAT equalizer
  • Output signal LED indicator
  • Power selection switch for LNB: local (low-V) or remote
  • Switch for pre-amplifier or BOSS system powering
  • Test output (-30 dB)
  • Can be wall-mounted using screws

Specifications

Inputs UHF BIII FM IF
Frequency Margin MHz 470-694 174-254 88-108 950-2150
Gain dB 39 ± 3 35 ± 3 17 ± 2 35 ± 3 (950Mhz.)
41 ± 3 (2150Ghz.)
Input attenuation range dB 0 - 20
Equalisation range dB --- 0-15
Input/Output return losses dB >10 >10
Noise figure dB 7 < 6 < 9 10
Max. Output level (DIN45004B)
IMD3 (2ch –60dB)		 dBµV. 117
114		 > 113
> 113		 > 113
> 110		 ---
(EN50083)
IMD3 (2ch –35dB)		 --- 124
Max. Input line power supply Vdc 12
mA 70 70 70 300*
Total input DC mA 300*
(12Vdc)
Power supply LNB
(REMOTE)		 mA --- 500
Power supply V~ 220 - 230
Max. Current mA~ 100
Consumption W 8,2
Operating temperature ºC -5 to +45
Protection Index IP 20
