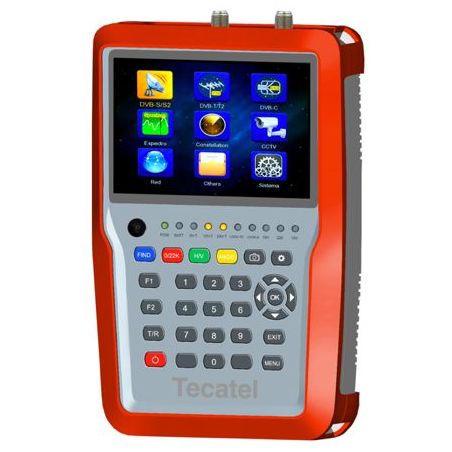

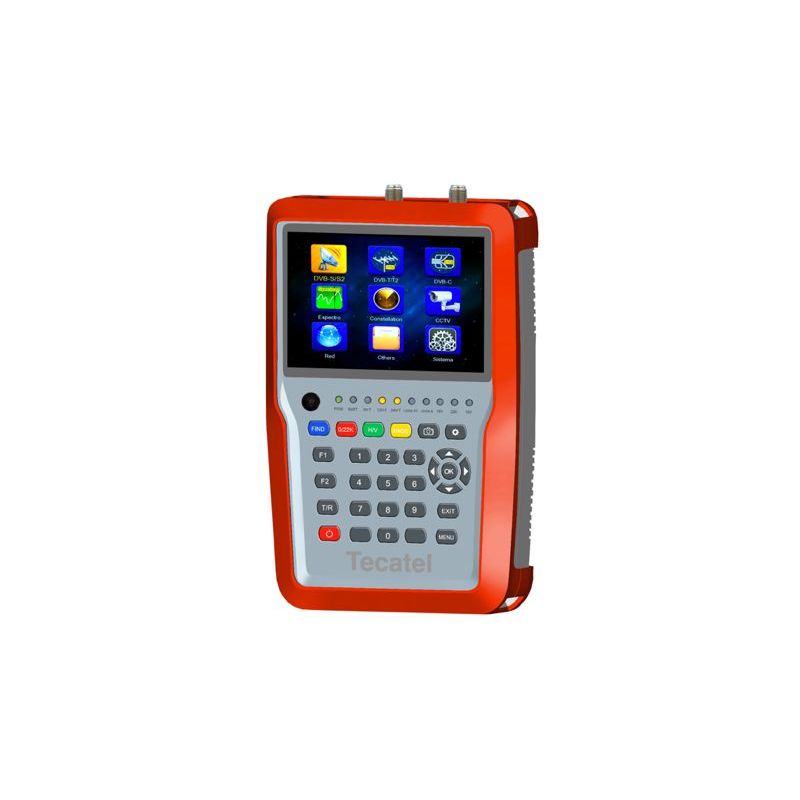

Field Meter Tecatel M-TD24K HD 265 4K DVB-S, DVB-T, DVB-C+DATOS+CCTV
Professional 4K field meter for Satellite, Terrestrial, Cable, Data and CCTV. Tecatel M-TD24K field meter for DVB-S / S2, DVB-T / T2, DVB-C signals, as well as Data (WIFI / Cable) and CCTV (AHD) monitoring. This equipment has a 5 "TFT-LCD screen with Ultra HD 4K resolution. With protective cover and more.
€798.45
Tax included
Reference
tecatel-m-td24k
Brand
Tecatel
Field Meter Tecatel M-TD24K HD 265 4K DVB-S, DVB-T, DVB-C+DATOS+CCTV
€798.45
This model replaces the M-TD2
Professional 4K field meter for Satellite, Terrestrial, Cable, Data and CCTV. Tecatel M-TD24K field meter for DVB-S / S2, DVB-T / T2, DVB-C signals, as well as Data (WIFI / Cable) and CCTV (AHD) monitoring. This equipment has a 5 "TFT-LCD screen with Ultra HD 4K resolution.
Features
- DVB-S / S2 / DVB-T / T2 and DVB-C HD meter.
- Ultra HD 4K TFT-LCD screen.
- Supported network (WIFI / Cable).
- CCTV monitoring supported (AHD format).
- USB port for software update.
- Selectable antenna power output.
- Multi-language menu.
- Video input for receiver, camera, etc.
- Shows real spectrum and constellation.
- MER and BER signal indicator.
- IPTV function
Specifications
| Frequency range | Input | DVB-S/S2 950-2150 MHz DVB-T/T2 DVB-C 110-868 MHz |
| Video Decoding | H.265 2K/HEVC/AVC/AVS+,AVC/H.264,MPEG-2,MPEG- 4 PART2,DIVX,XVID,MPEG-1/H.261/H.263.AVS | |
| Resolution | 4K (30/25 fps),1080P,1080i,720P,576P,576i | |
| Display | 5” TFT- LCD | |
| Input impedance | 75W | |
| External power | 14V/3A | |
| Energy consumption | Max 25W | |
| LNB voltage | 13/18V – 0/22KHz | |
| LNB consumption | 500 mA | |
| Prior feed voltage RF | 5V / 12V / 24V | |
| RF power consumption | 50 mA | |
| IPTV function | UDP Multicast | |
| CCTV Resolution | Cameras: up to 1080p PAL/NTSC/ Recorders: up to 576i PAL | |
| Demodulator | DVB-S/S2 QPSK ( 2Mbps ~ 45Mbps ) / 8 PSK DVB-T/T2 / DVB-C QPSK / 16QAM / 32QAM / 64QAM / 128QAM / 256QAM |
|
| Dimensions | 215 x 140 x 50 (mm) | |
| Weight | 0.872 Kg. | |
Package content
- Field meter
- Protective case
- Power cord
- Power adapter
- Car charger
- Remote control
- AV input / output cable
- BNC connector
- Power cable converter
