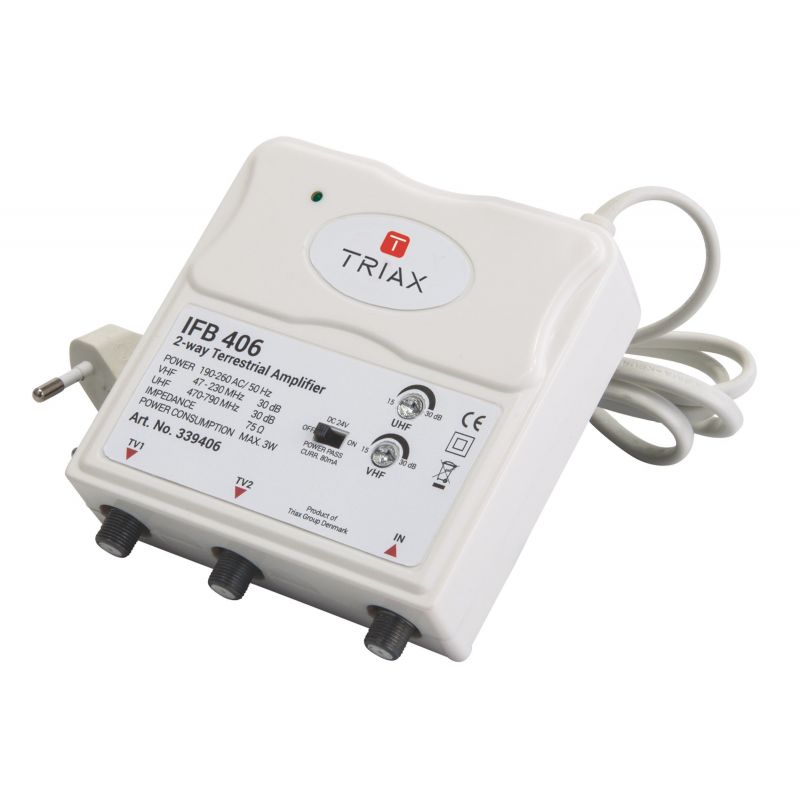

Triax IFB 406 Indoor amplifier TDT 30dB 2 outputs, LTE
The IFB 406 housing amplifier is designed for indoor use and amplifies analogue and digital VHF and UHF (47 - 790MHz) TV signals.
€45.68
Tax included
Reference
triax-339406
Brand
Triax
Triax IFB 406 Indoor amplifier TDT 30dB 2 outputs, LTE
€45.68
The IFB 406 housing amplifier is designed for MATV IFB 406 housing amplifier.
The IFB 406 housing amplifier is designed for indoor use and amplifies analogue and digital VHF and UHF (47 - 790MHz) TV signals.
Features
- VHF / UHF amplifier
- 1 combined VHF / UHF input with independent level adjustment.
- 2 symmetrical outputs of 105 dBμV.
- Power switch for preamplifiers (24Vdc / 80mA).
- F input and output female connectors.
- Gain of 30 dB and 2 symmetrical outputs of 105 dBμV.
- Elegant design and reduced dimensions (102x102x29 mm).
- RF circuit housed in a high protection zamak housing.
- LTE its use inside homes and amplify the analog and digital signals VHF and UHF (47 - 790MHz) of TV.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663394063 |
| CHARACTERISTICS | |
| Type | Amplifier - indoor |
| Output level IMD 3, EN 50083-5 | 2 x 105 dBµV |
| FREQUENCY | |
| Frequency range VHF | 47...230 MHz |
| Frequency range UHF | 470...790 MHz |
| LTE protection | 700 / 800 |
| GAIN | |
| Gain - VHF | 15...30 adj dB |
| Gain - UHF | 15...30 adj dB |
| Noise figure UHF | 5.0 dB |
| Noise figure VHF | 4.0 dB |
| LOSS | |
| Rejection | > 25 @790...805MHz dB |
| ISOLATION | |
| Isolation | > 25 dB |
| RETURN LOSS | |
| Return Loss | > 14 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| AC Supply voltage | 190-260 VAC |
| Power Consumption (typ.) | 3 W |
| DC Passthrough | Yes (max. 24VDC / 80mA) |
| CONNECTORS | |
| Connector Type | F-female |
| Number of inputs | 1 |
| Number of outputs | 2 |
| MECHANICAL | |
| Dimensions product (H x D x W) | 29x102x102 mm |
| Packing QTY | 1 |
| Packaging Height | 0.102 m |
| Packaging Width | 0.102 m |
| Packaging Depth | 0.029 m |
| Net Weight | 0.300 kg |
| Tara Weight | 0.050 kg |
| Total Weight | 0.350 kg |
