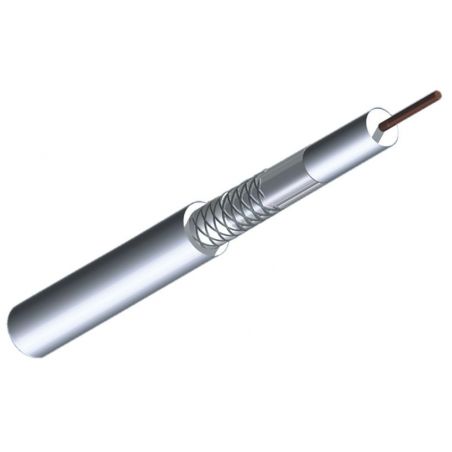

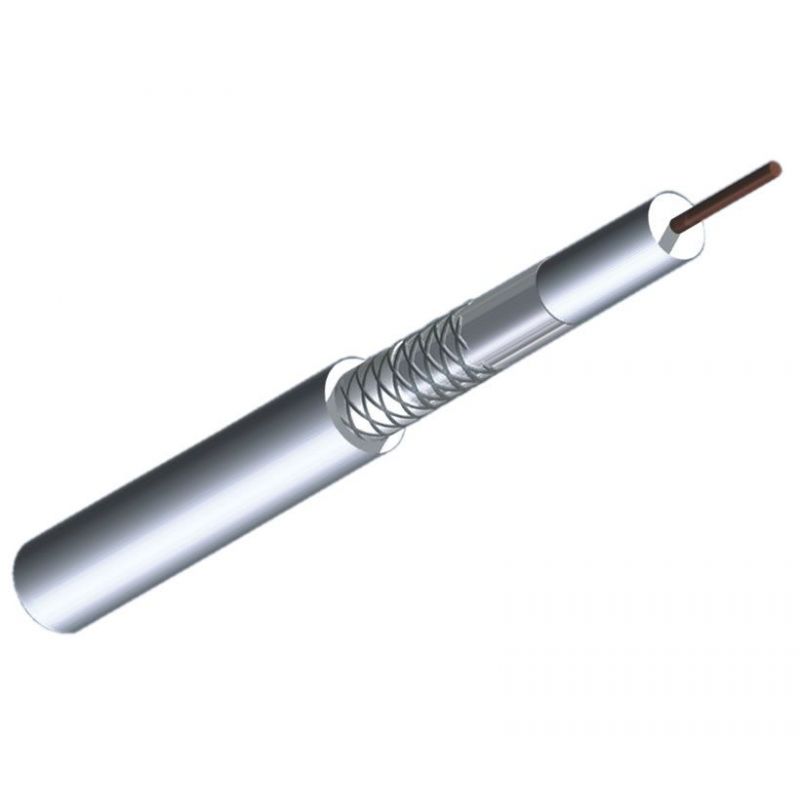

Coaxial cable Triax RG58 satellite 3 Ghz white inside coil of 100 meters
RG58 Class B 3GHz Triax UC 23 coaxial cable. 100 meter spool.
€64.13
Tax included
Reference
triax-360835
Brand
Triax
Coaxial cable Triax RG58 satellite 3 Ghz white inside coil of 100 meters
€64.13
RG58 Class B 3GHz Triax UC 23 coaxial cable. 100 meter spool.
Characteristics
- Cable Ø 5 mm.
- Copper live Ø 0.80 mm.
- Alu / Pet / Alu sheet.
- Aluminum braid.
- Loss from 100 to 800 MHz: 23 dB at 2150 MHz: 39 dB.
- Reel 100 m.
- White color.
Specifications
| Dimensions | |
| Color | White |
| Length (m) | 100 m |
| Construction | |
| Inner conductor - material | Cu |
| Inner conductor - dimension | 0.8 ± 0.02 mm |
| Dielectric - material | FPE |
| Dielectric - dimensions | 3.50 ± 0.10 mm |
| Protection (First) sheet 1 - material | Al / PET / Al |
| Protection (second) - braid material | To the |
| Protection (second) - braid | twenty % |
| Cover - dimension | 5.0 ± 0.15 mm |
| Cover - material | PVC |
| Certification | |
| Class | B |
| Armor | |
| Shield attenuation @ 30-1000 MHz | > 75 dB |
| Shield attenuation @ 1000-2000 MHz | > 70 dB |
| Shield attenuation @ 2000-3000 MHz | > 60 dB |
| Impedance | |
| Transfer impedance @ 5-30 MHz | <15 m="" td=""> |
| Attenuation | |
| Attenuation (at 20 ° C) @ 5 MHz | 2.2 dB |
| Attenuation (at 20 ° C) @ 50 MHz | 6.1 dB |
| Attenuation (at 20 ° C) @ 200 MHz | 11.2 dB |
| Attenuation (at 20 ° C) @ 470 MHz | 17.5 dB |
| Attenuation (at 20 ° C) @ 800 MHz | 23.0 dB |
| Attenuation (at 20 ° C) @ 862 MHz | 23.9 dB |
| Attenuation (at 20 ° C) @ 1000 MHz | 25.9 dB |
| Attenuation (at 20 ° C) @ 1350 MHz | 30.4 dB |
| Attenuation (at 20 ° C) @ 1750 MHz | 34.8 dB |
| Attenuation (at 20 ° C) @ 2150 MHz | 39.0 dB |
| Attenuation (at 20 ° C) @ 2400 MHz | 41.0 dB |
| Attenuation (at 20 ° C) @ 3000 MHz | 46.5 dB |
| Return loss | |
| Structural return loss @ 30-100 MHz | > 20 dB |
| Structural Return Loss @ 100-470 MHz | > 20 dB |
| Structural Return Loss @ 470-1000 MHz | > 20 dB |
| Structural return loss @ 1000-2000 MHz | > 18 dB |
| Structural Return Loss @ 2000-3000 MHz | > 16 dB |
| Electrical data | |
| Impedance | 75 ± 3 Ω |
| Capacitance | 52 ± 1 pF / m |
| Speed ratio | 80% |
| Internal resistance DC | <35 ohm="" km="" td=""> |
| External DC resistance | <52 ohm="" km="" td=""> |
| Radius of curvature | |
| Minimum curvature radius - one / several | 35/70 mm |
| Packaging | |
| Packaging Volume | 0,000 m3 |
| Net weight | 0.025 kg |
| Tare weight | 0.000 kg |
| Total weight | 0.025 kg |
| Packing Height | 0.000 m |
| Packaging Width | 0.000 m |
| Packing Depth | 0.000 m |
