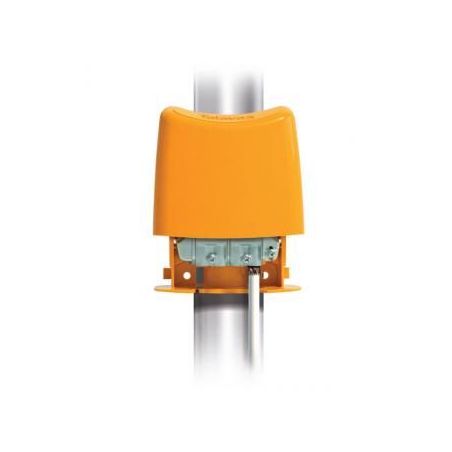

Q-BOSS converts any passive antenna LTE compatible since, besides incorporating an anti LTE / 4G filter BOSStech endows the intelligent system.

Thanks to these two features, the upgrade installation using a Q-BOSS is on foot mast and without changing the antenna.

The important advantages provided by this system are the lack of adjustment and less time spent in the work of adaptation. Both provide higher returns to the installation company.

The range of Q-BOSS devices consists of three references which differ in the cutting channel (58, 59 or 60) and a reference (562,101) for DTT reception areas BIII / UHF.

FEATURES:

    Two references to adjusted operating band of installation based on the DTT signals received: Q-BOSS 774 for installations up the channel 58, Q-BOSS 782 for installation into the channel 59 and Q-BOSS 790 for installations up to channel 60.
    Suitable for unprotected LTE antennas since, apart from self-adjust the gain in TDT, filter signal TV (channels 21- 60, 21-59 or 21-58) avoiding interference of telephone signals.
    Its design is based on the use of the latest generation of microcomponents (1 x 0.5 mm) which reduce the device size and power consumption.
    Manufactured using fully automated processes, resulting in high reliability.
    EasyF connection for easy installation.
    Power supply 12 ... 24VDC low consumption.
    Specific reference (562,101) for mixed reception antennas BIII / UHF.

Highlights:

    It allows operation of the antenna even without being fed.
    It allows the installer to update any antenna to the LTE and provide it with intelligence, without climbing to its location.
    Device "plug & play" that automatically adjust the output level to the proper value, offering the best possible signal quality.
    Prevents future changes in signal level, keeping unchanged the signal quality.
    Without adjustments.
