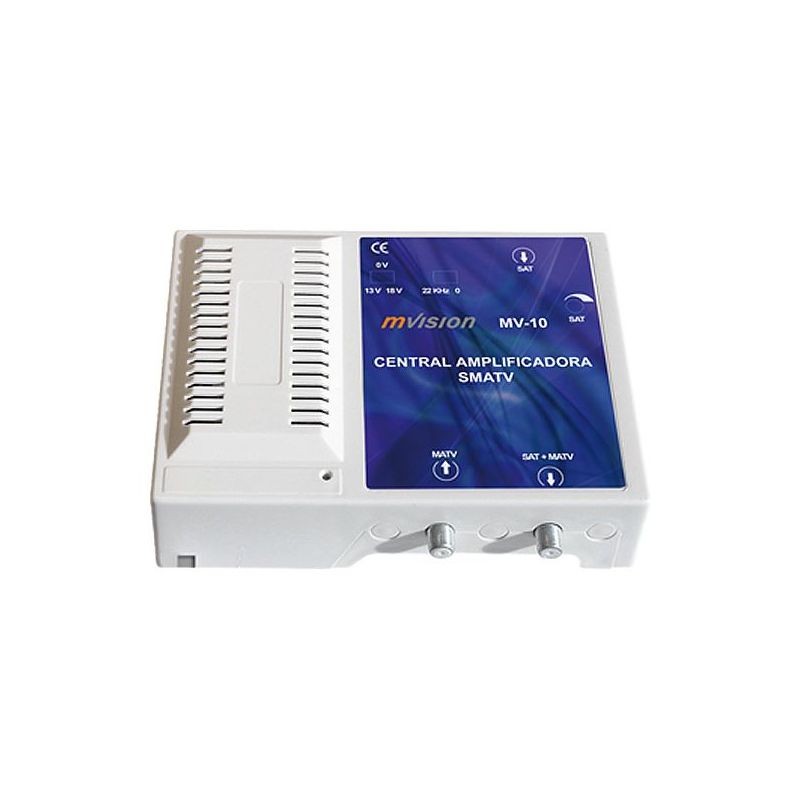

Amplifier mVision SMATV 40db SAT + TV

Amplifier mVision SMATV with SAT inputs and TV mix with LNB power supply.

Specifications

• 1 SAT input + 1 mix TV input
• FI-SAT band: 950-2150 MHz
• Gain: 35 - 40 dB
• Gain regulation: 20 dB
• Output level: 120 dB
• Input / output return loss: 6 dB
• Noise figure: 7 dB
• TV band: 47-860MHz
• TV insertion loss: + 1db
• Selectable FI-SAT input voltage: 0 / +13 / + 18V (DC)
• Selectable FI-SAT input tones: 0/22 MHz
• Max. LNB power: 350mA
• Consumption: 15W
• Operating temperature: -10 ... + 55ºC
