SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 1643 AND id_lang = 1 ZENIT V UHF antenna (C21-58 / 59/60 configurable) Televes

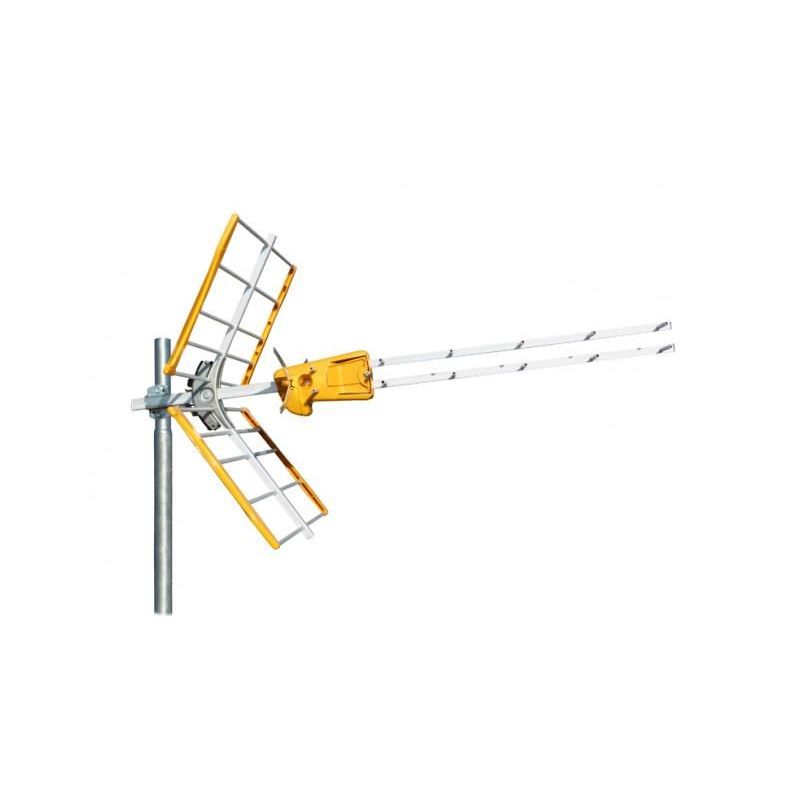

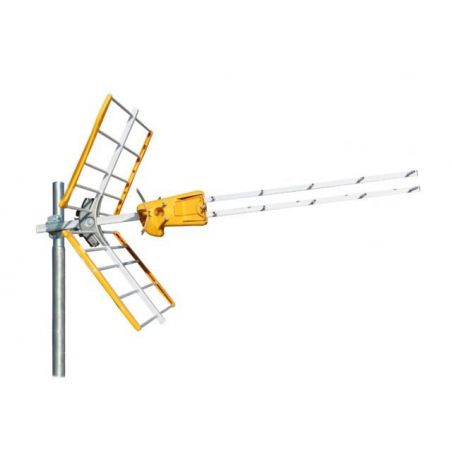

ZENIT V UHF antenna (C21-58 / 59/60 configurable)
search
  • ZENIT V UHF antenna (C21-58 / 59/60 configurable)

Antenna VZENIT UHF (C21-58 / 59/60 configurable) Televes

Three antennas in one. Changing the position of the directors allows changing the frequency response of the antenna, positioning the upper limit of the band on channel 58 or 59 or 60. Televes 149201

This product is replaced by the Terrestrial Antenna V ZENIT UHF (C21-48) G 13dBi LTE700 Televes

€52.93
Tax included
Reference televes-149201
Brand Televes
Quantity
Available in 24/48h

Free shipping
ZENIT V UHF antenna (C21-58 / 59/60 configurable)

Antenna VZENIT UHF (C21-58 / 59/60 configurable) Televes

€52.93

Channel Selection Geometry (CSG) technology

CSG Technology (geometry channel selection) is a new concept in the design and manufacture of antennas TV antenna giving the adjustable filter paper by changing its shape (geometry).

Three antennas in a. Changing the position of the directors to change the frequency response of the antenna, positioning the upper limit of the band on channel 58 or 59 or 60.

Highlights

  •     Special double "U" that allows adjustment of the frequency response by opening the directors dipole.
  •     10 reflector elements.
  •     Innovative fast and safe assembly of the spotlight.
  •     Made of high quality aluminum that ensures long life.

Features

  •     Valid for any channel map of the Digital Dividend, regardless of the upper cutting channel Antena.
  •     Robust and lightweight.
  •     Flatness in band.

Specifications

Reference   149201
Mode
 Work band MHz 470-774
CH 21-58		 470-782
CH 21-59		 470-790
CH 21-60
 Gain dBi 15
 Front-to-Backratio dB 23
 Wind load  130 Km/h N 93
 150 Km/h 128
