SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 1672 AND id_lang = 1 Central line amplifier DTKom

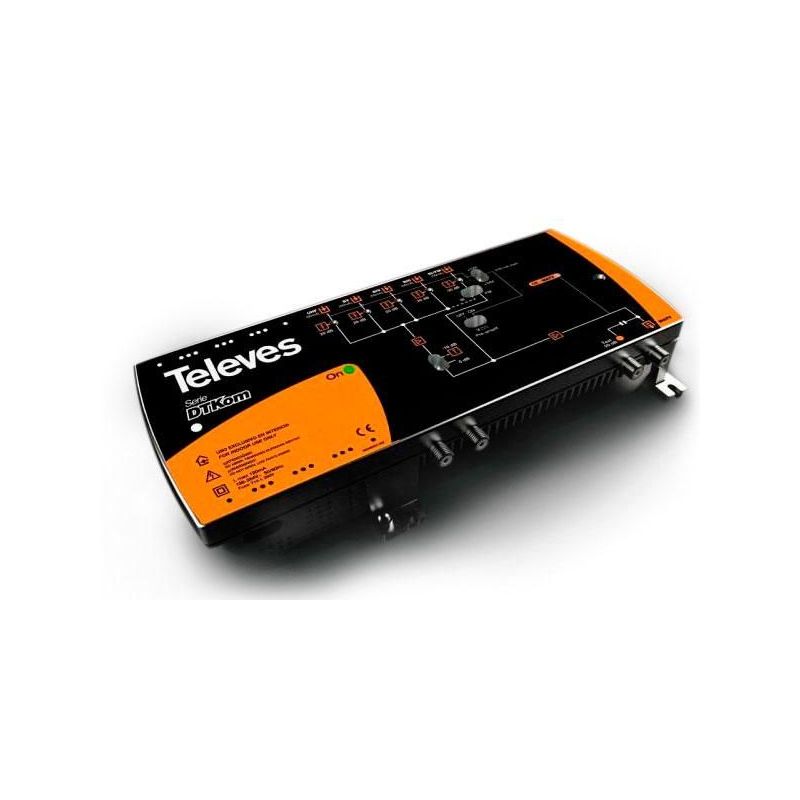

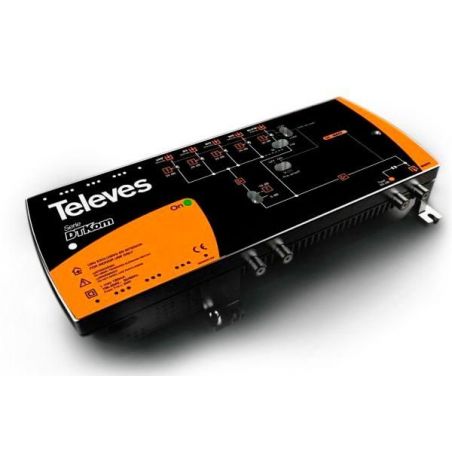

Central line amplifier DTKom Televes
search
  • Central line amplifier DTKom Televes

Central line amplifier DTKom Televes

MATV central line applications.

Separate amplification, which facilitate high output voltages and minimizes intermodulation bands.

€286.92
Tax included
Reference televes-5338
Brand Televes
Quantity
Available in 24/48h

Free shipping
Central line amplifier DTKom Televes

Central line amplifier DTKom Televes

€286.92

MATV central line applications.

separate amplification, which facilitate high output voltages and minimizes intermodulation bands.

PUSH-PULL designed with technology that ensures 123 dBĩV levels in VHF and / or UHF.

MATV central line applications.

separate amplification, which facilitate high output voltages and minimizes intermodulation bands.

PUSH-PULL designed with technology that ensures 123 dBĩV levels in VHF and / or UHF.


   SETTING AND ADJUSTMENT SCHEME



1. Power input (230V).

2. Connect ground.

3. Power LED.

4. Check MATV.

5. Test MATV input.

6. Test output MATV.

7. Check MATV.

8. remote power switch for the input.

9. Dimmer MATV.

10. Equalizer MATV.

11. remote power switch for the exit.

12. Status LED (signal present).

13. Switch + 10dB.

14. Switch + 10dB.

15. Dimmer MATV.

16. Equalizer MATV

Referencia 5338
Entradas bandas MATV
Banda Amplificada  MHz 47 - 862
Ganancia dB 41 - 53
Vout máx (DIN45004B) dBµV  123
Figura de ruido dB 10
Margen atenuación  0 - 18
Margen ecualización
Margen preacentuador 0 - 10
Conmutación ganancia adicional
Consumo dispositivo mA 700 @ 9 Vdc
Corriente máxima disponivel E/S 700
Número máximo de centrales a telealimentar 1
Alimentación Vac 196-264
