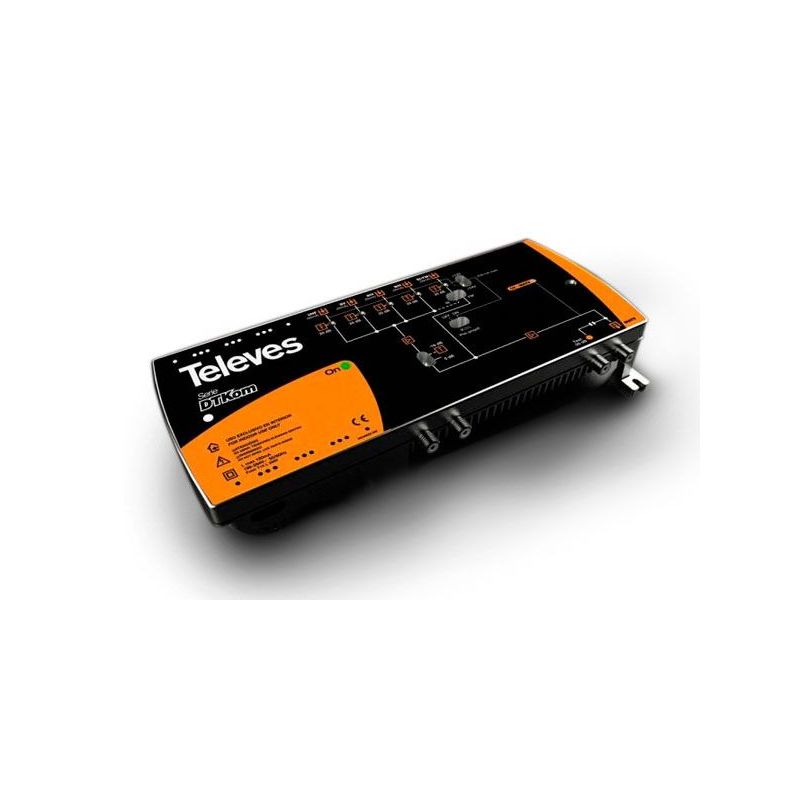

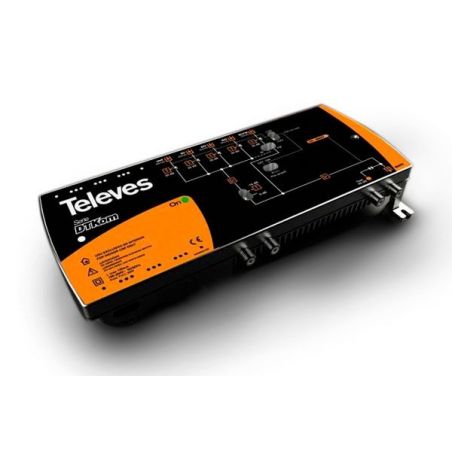

Range of plants designed for use in both primary and distribution. Designed to facilitate the adjustment process, thanks to their willingness to microswitches and trimers manipulated from the outside of the plant.

     Push-pull technology and power-doubling (123 or 129 dBmV).
     Specific components to minimize the total noise figure.
     LED indicator detected signal.
     Preamps power by switching.
     Switch high / low gain.
     Switching power supply high-performance and low consumption.

   SETTING AND ADJUSTMENT SCHEME





1. Set Gain UHF.

2. Gain Adjustment BV (ref.5341 only).

3. Gain adjustment BIV (ref.5341 only).

4. Set Gain BIII.

5. Set Gain BI / FM.

6. LED status indicating signal presence.

7. Selector high / low gain.

8. Switch to previous 12Vdc power ON / OFF.

9. Selector BI or FM amplifier.
