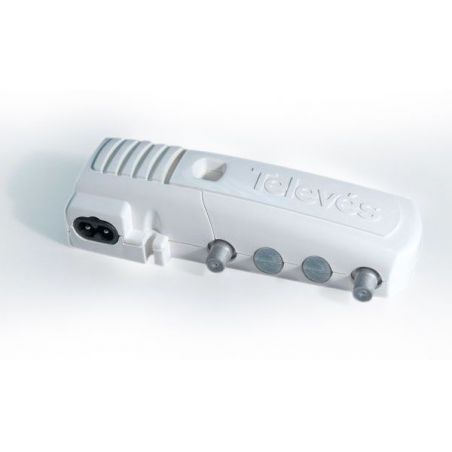

Indoor domestic amplifier 1E / 1S CATV (5 ... 862 MHz) "F" connector Televes
Wide range of domestic amplifiers for CATV applications. Featuring high output level and low power consumption.
€53.13
Tax included
Reference
televes-553301
Brand
Televes

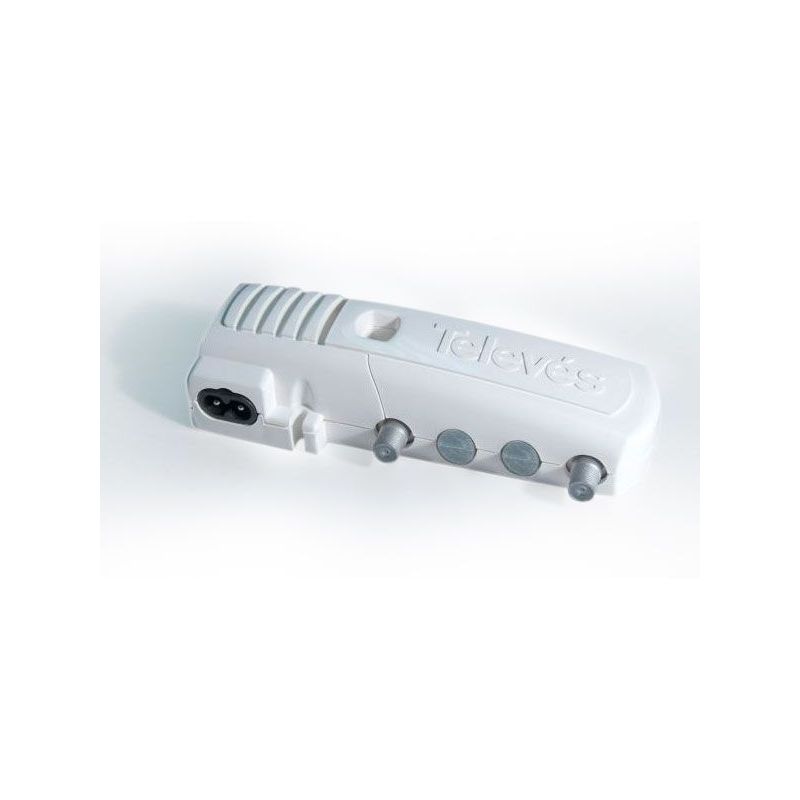

Indoor domestic amplifier 1E / 1S CATV (5 ... 862 MHz) "F" connector Televes
€53.13
Wide range of domestic amplifiers for CATV applications. Featuring high output level and low power consumption.
- Fully automatic production.
- 50% lower power consumption than an standard amplifier.
- Low Noise figure.
- Adjustable gain.
- Adjustable cable equalizer.
- Active or passive return path.
- Up to 3 outputs.
| Reference | 553301 | |||
| Number of outputs | 1 | |||
| Foward path | ||||
| Frequency range | MHz | 47-862 | ||
| Gain | Outputs | dB | 24 | |
| TV | - | |||
| Adjustable equalizer | dB | 18 | ||
| Output level DIN45004B | dBμV | 112 | ||
| Output level EN50083-3 | dBμV | 95 | ||
| Gain adjustment | dB | 18 | ||
| Noise figure (typ.) | dB | 6 | ||
| Return path | ||||
| Frequency range | MHz | 5-30 | ||
| Gain | dB | -1 | ||
| Output level DIN 45004B | dBμV | - | ||
| Noise figure (typ.) | dB | - | ||
| Power supply | ||||
| Mains voltage | Vac | 196-264 | ||
| AC Power consumption | W | 3,5 | ||
| Protection index | IP | 20 | ||
| Dimensions (Wid x Hei x Dep) | mm | 145 x 45 x 35 | ||
