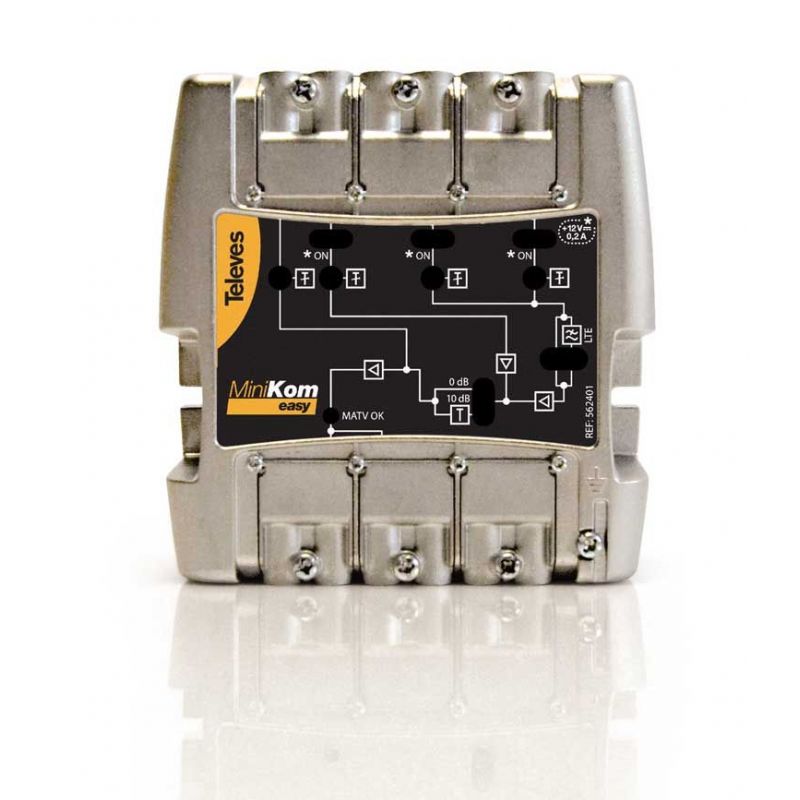

3 In/1 Out FM-V-U Televes LTE
search
  • 3 In/1 Out FM-V-U Televes LTE

Central amplificadora Minikom 4 In/1 Out FM-V-U-U Televes LTE

Compact amplifiers with the possibility of low or high gain, multiple inputs, to be deployed in small and medium size systems.

€167.91
Tax included
Reference televes-562401
Brand Televes
Quantity
Available in 24/48h

Free shipping
3 In/1 Out FM-V-U Televes LTE

Central amplificadora Minikom 4 In/1 Out FM-V-U-U Televes LTE

€167.91

Compact amplifiers with the possibility of low or high gain, multiple inputs, to be deployed in small and medium size systems.

  • New compact design.
  • Different versions available with & without LTE filter.
  • Switch mode power supply guaranteeing low power consumption.
  • ON/OFF Switch to select DC bypass.
  • LED’s indicating output signal and power supply.
  • Test output (-30dB).
  • Gain switch: high/low.
  • Possibility of being fixed to the wall.
Reference  562401
 Inputs FM VHF UHF1 UHF2
 Frequency range MHz 88-108 174-400 470-862
470-790
 Gain (low/high) dB 15 21 / 31 28* / 38*
 Gain adjustment range dB 0-20 0-20 0-20
 Output
 level  		  DIN45004B dBµV 113 114 117
 EN50083   IMD3 dBµV - 111 114
 IMD2 dBµV - 103 -
 Noise figure dB 7 8 9
 Power on inputs Vdc - 12 12
 Max current through inputs mA - 200 200
 Max current available mA - 400 400
 AC Power consumption W 11,5

*  LTE ON: -2 dB
