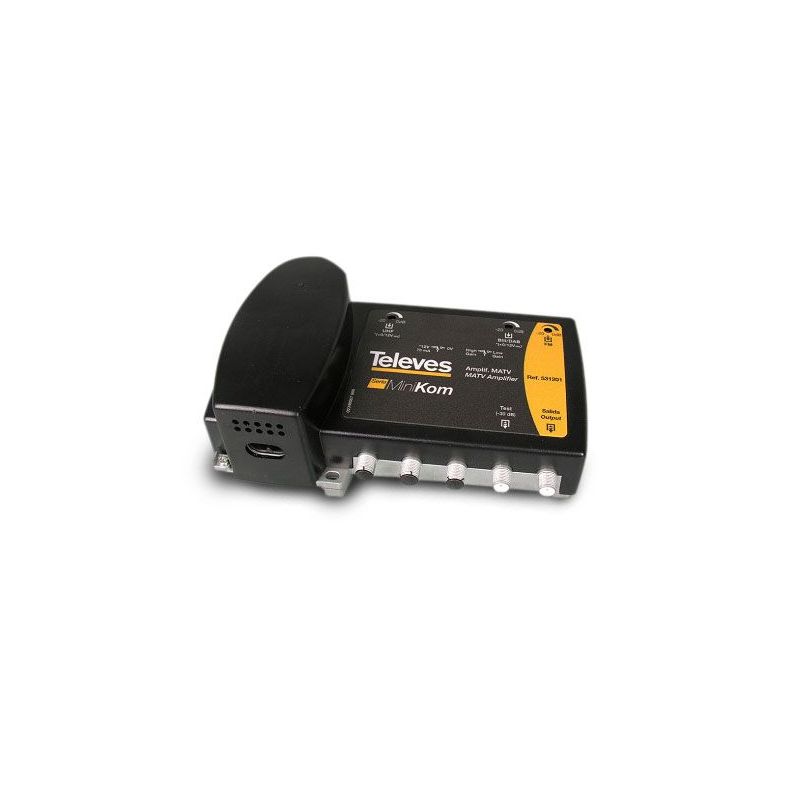

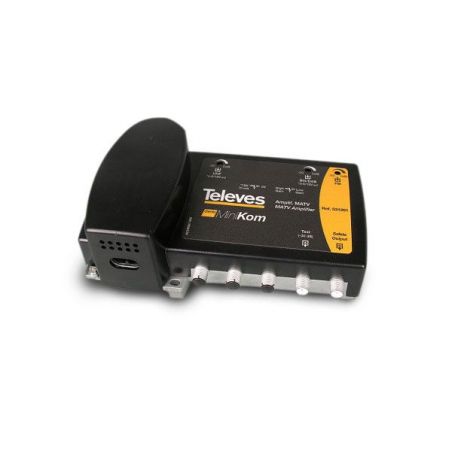

Central amplificadora de línea MATV, Minikom BP 1in/1out VHF/UHF Televes
MATV launch amplifiers, designed for small and medium size distribution networks. To be used as MATV headend. Featuring a Low/High gain switch guaranteeing a wide dynamic margin with low noise figure.
€145.78
Tax included
Reference
televes-537302
Brand
Televes
Central amplificadora de línea MATV, Minikom BP 1in/1out VHF/UHF Televes
€145.78
MATV launch amplifiers, designed for small and medium size distribution networks. To be used as MATV headend. Featuring a Low/High gain switch guaranteeing a wide dynamic margin with low noise figure.
Features
- Split-band amplification.
- 20 dB independent attenuators (PIN diode) for each band.
- Gain switch: high/low..
- Automatic DC power through inputs (selectable).
- Test output (-30 dB).
- Low power consumption.
Specifications
| Reference | 537302 | ||||
| Inputs | Band | VHF/UHF | |||
| Frequency range | MHz | 47-454 | 470-862 | ||
| Gain (low/high) | dB | 20/30 | 27/37 | ||
| Gain adjustment range | 0-20 | 0-20 | |||
| Output level | DIN45004B | dBμV | 114 | 116 | |
| EN50083 | IMD3 | 111 | 113 | ||
| IMD2 | 103 | - | |||
| Noise figure | dB | 7 | |||
| Power on inputs | Vdc | 24 | |||
| Max current through inputs | mA | 70 | |||
| Max current available | mA | - | |||
| AC Power consumption | W | 7 | |||
