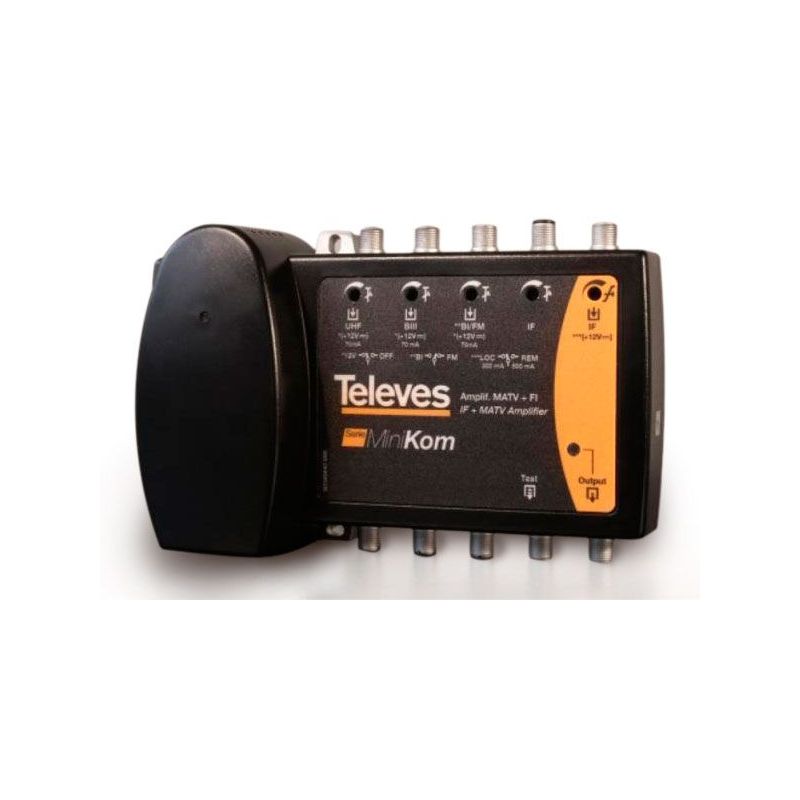

Central Minikom IF 4 inputs (VHF/BIII/BI-FM/IF) Televes

MATV launch amplifiers, designed for small and medium size distribution networks. To be used as MATV headend. Featuring a Low/High gain switch guaranteeing a wide dynamic margin with low noise figure.

This product is replaced by the Central broadband MiniKom MATV + FI 4 inputs "F" FM-BIII-UHF-SAT LTE700/5G Televes

€180.40

Tax included

Reference televes-5396

Brand Televes

Central Minikom IF 4 inputs (VHF/BIII/BI-FM/IF) Televes

€180.40

Description
Product Details

Split-band amplification.
20 dB independent attenuators (PIN diode) for each band.
Gain switch: high/low..
Automatic DC power through inputs (selectable).
Test output (-30 dB).
Low power consumption.

Reference				5396
Input			Band	BI/FM	BIII	UHF	SAT
Output			Band	MATV/SAT
Frequency range			MHz	47-68 88-108	174-254	470-862	950-2150
Gain			dB	33/20	35	40	35 (950MHz) 42 (2150MHz)
Gain adjustment range			dB	0-20	0-20	0-20	0-20
Input equalizer				-	-	-	0-15
Output level	DIN45004B		dBμV	112	112	115	-
	EN50083	IMD3		109	109	112	121
		IMD2		-	-	-	-
		CTB,CSO,XMOD		-	-	-	-
Noise figure			dB	8	6	6	14
Rejection UHF- IF SAT			dB	>40	>40	>40	>40
Power on inputs			Vdc	12	12	12	12 Local 12/17 Remote
Max current through inputs			mA	70	70	70	300 Local
Max current available			mA	300	300	300	300
Max through current Out -> In			mA	-	-	-	500 Remote
22KHz tone amplitude			Vpp	-	-	-	-
AC Power consumption			W	10	10	10	10
