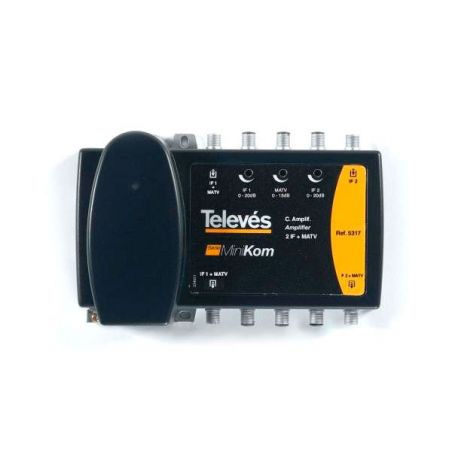

IF launch amplifier 2 IF inputs + MATV Televes
MATV launch amplifiers, designed for small and medium size distribution networks. To be used as MATV headend. Featuring a Low/High gain switch guaranteeing a wide dynamic margin with low noise figure.
€251.75
Tax included
Reference
televes-5317
Brand
Televes
IF launch amplifier 2 IF inputs + MATV Televes
€251.75
MATV launch amplifiers, designed for small and medium size distribution networks. To be used as MATV headend. Featuring a Low/High gain switch guaranteeing a wide dynamic margin with low noise figure.
- Split-band amplification.
- 20 dB independent attenuators (PIN diode) for each band.
- Gain switch: high/low..
- Automatic DC power through inputs (selectable).
- Test output (-30 dB).
- Low power consumption.
| Reference | 5317 | ||||||
| Input | Band | MATV/SAT1 | SAT2 | ||||
| Output | MATV/SAT1 – MATV/SAT2 | ||||||
| Frequency range | MHz | 5-30 | 47-862 | 950-2150 | |||
| Gain | dB | -5 | 30 | 33 (950MHz) 38 (2150MHz) |
|||
| Gain adjustment range | dB | - | 0-20 | 0-20 | |||
| Input equalizer | - | 0-20 | 0-15 | ||||
| Output level | DIN45004B | dBμV | - | 117 | - | ||
| EN50083 | IMD3 | - | 114 | 123 | |||
| IMD2 | - | 112 | 119 | ||||
| CTB,CSO,XMOD | 96 | - | |||||
| Noise figure | dB | - | 8 | 10 | |||
| Rejection UHF- IF SAT | dB | - | |||||
| Power on inputs | Vdc | - | |||||
| Max current through inputs | mA | - | |||||
| Max current available | mA | - | |||||
| Max through current Out -> In | mA | - | |||||
| 22KHz tone amplitude | Vpp | - | |||||
| AC Power consumption | W | 12 | |||||
