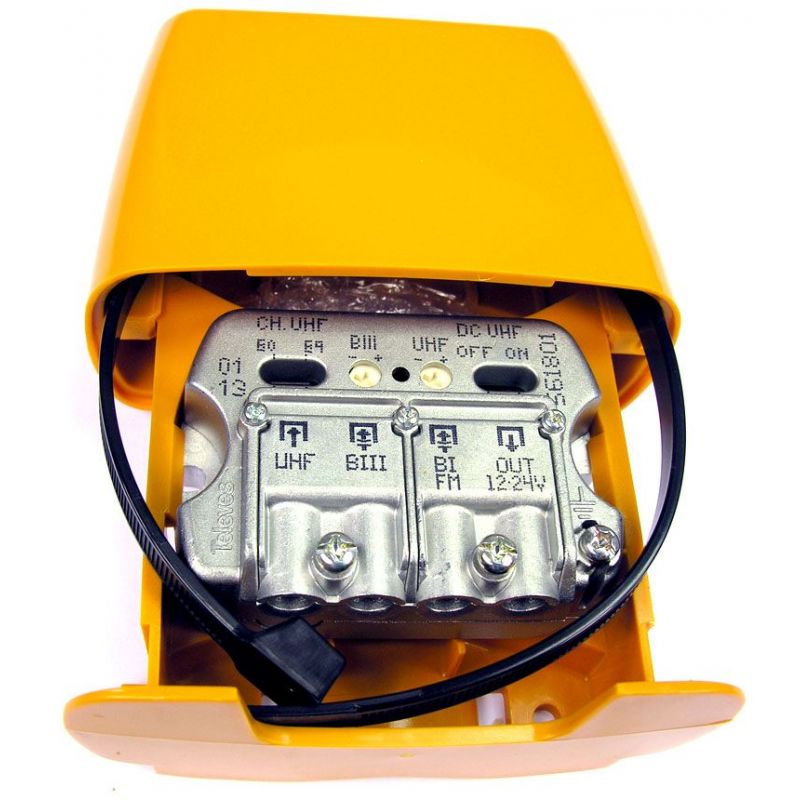

Amplificador de mástil 3in/1out BIII-UHF-FMmix LTE Televes

Breakthrough technology “USOS” for a range of amplifiers with oustanding design.

This product is replaced by the Amplifier Mast NanoKom 3e/1s EasyF BIII/UHF[dc]/FMmix 12...24V LTE700 Televes

€43.35

Tax included

Reference televes-561801

Brand Televes

Amplificador de mástil 3in/1out BIII-UHF-FMmix LTE Televes

€43.35

Description
Product Details

Breakthrough technology “USOS” for a range of amplifiers with oustanding design.

USOS (User Selectable Output Signal). The user adjusts the required output level and the device will adapt dinamically to the changing received signal.
Ch60/C69 switch to activate LTE filter.
ON/OFF switch to activate DC bypass.
Very low noise figure.
User friendly design for very small size and easy of use.
EasyF connection type.
Weatherproof cases made of ABS plastic.

Reference		561801
Inputs/ Bands		UHF	BIII	BI/FM
Frequency range	MHz	470-862 470-790*	174-254	47-108
Gain	dB	29	21	-2
Output level DIN45004B	dBμV	10	5	10
Automatic gain margin	dB	0-15	0-15	-
Output level regulation margin Vout	dBμV	0-12	0-12	-
Automatic output level (10 DTT channels)	dBμV	94	-	-
Gain adjustment range	dB	-	-	-
Noise figure	dB	1	3	-
Power supply	Vdc	12-24
Current consumption	mA	40
Max current through inputs	mA	-	-	-
Protection index	IP	23
Dimensions (Wid x Hei x Dep)	mm	88 x 79 x 42
