Masthead amplifier 12V 2E / 1S B3 / DAB-U-U G25dB Vs1114 LTE Televes
search
  • Masthead amplifier 12V 2E / 1S B3 / DAB-U-U G25dB Vs1114 LTE Televes

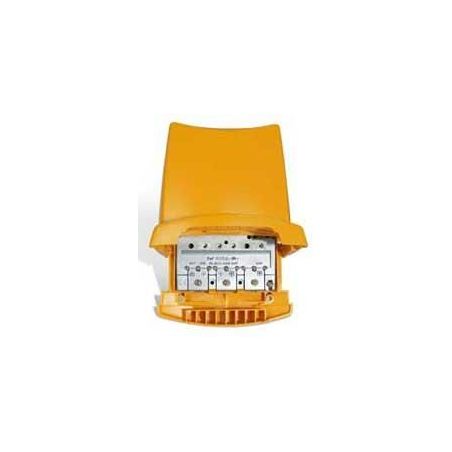

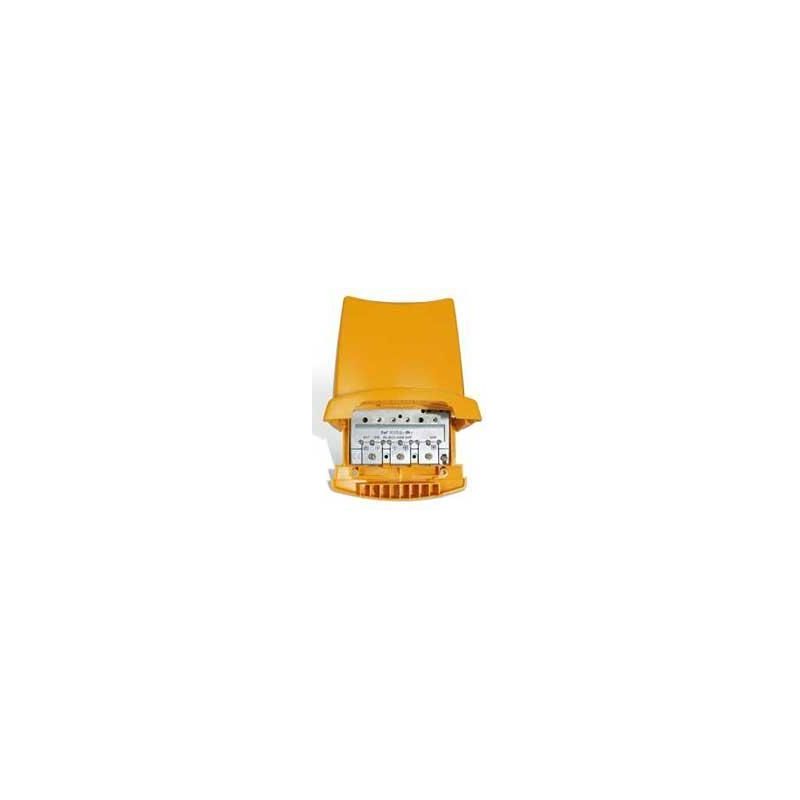

Masthead amplifier 12V 2E / 1S B3 / DAB-U-U G25dB Vs1114 LTE Televes

Masthead amplifier with possibility of filtering MATV LTE.

€46.02
Tax included
Reference televes-536040
Brand Televes
Quantity
Available in 24/48h

Free shipping
Masthead amplifier 12V 2E / 1S B3 / DAB-U-U G25dB Vs1114 LTE Televes

Masthead amplifier 12V 2E / 1S B3 / DAB-U-U G25dB Vs1114 LTE Televes

€46.02

Masthead amplifier with possibility of filtering MATV LTE.

  •      C60 / C69 switch to select the filter LTE.
  •      Interrutor ON / OFF for selecting the DC current flow.
  •      Ergonomic design and easy to install.
  •      EasyF connection system.
  •      ABS plastic.
  •      12 Vdc power.
Referencia   536040
 Entradas  UHF1  UHF2 BIII/DAB
 Margen de frecuencia MHz 470-790 470-790 174-254
 Ganancia  dB 26 26 26
 Regulación de ganancia dB 0-18 0-18 0-18
 Nivel de salida  EN50083 (1) dBμV 121 121 118
DIN45004B 114 114 111
EN50083 (2) 111 111 108
 Figura de ruido dB 10 10 10
 Alimentación Vdc 12
 Consumo de corriente mA 110
 Paso de corriente DC OFF -
ON 45 45
 Indice de protección IP 23
 Temperatura ºC -5...+45
 Peso g 450
 Dimensiones (L x A x P) mm 120 x 130 x 40

(1) IMD3 2 tonos -35dB
(2) IMD3 2 tonos -60dB
