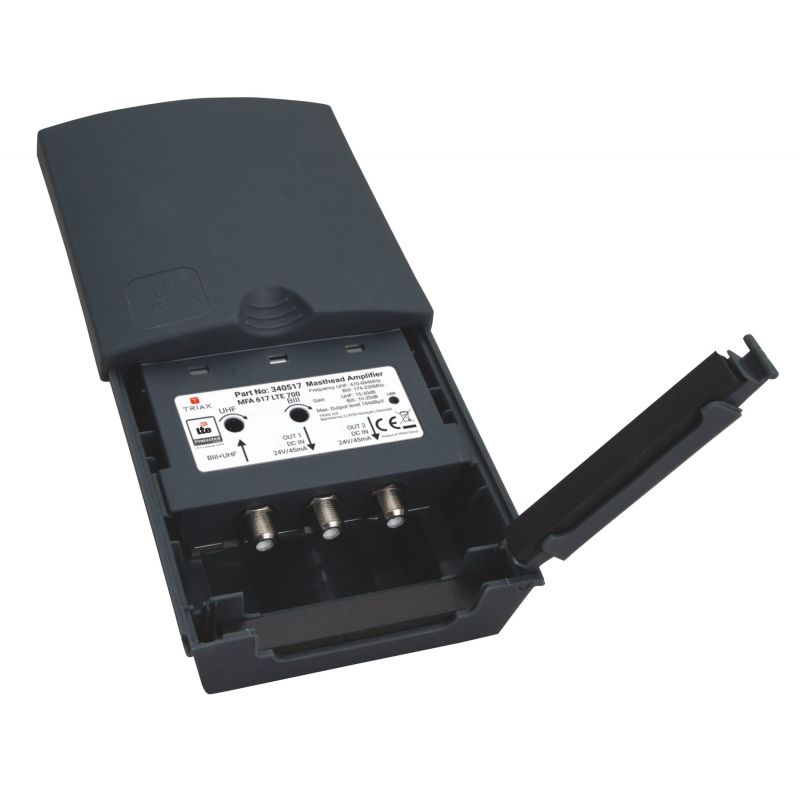

MFA 617 1 Input LTE 700 MHz Multiband mast amplifier Triax
1 input mast amplifier. Gain: 10 - 25 / 15- 30 dB. Output level: 104 dBµV. F female connectors. Waterproof case. RF shielded and CE approved (EN 50083).
€31.45
Tax included
Reference
triax-340517
Brand
Triax
MFA 617 1 Input LTE 700 MHz Multiband mast amplifier Triax
€31.45
MFA 617- mast amplifier
Features
- 24 VDC supply
- 1 input mast amplifier
- LTE protection LTE 700
- Gain: 10 - 25/15 - 30 dB
- Output level: 104 dBµV.
- High resistance to external disturbances
- High resistance to the corrosion
- Optimized mechanism for easy installation
- Optimized mechanism for easy installation
- Neoprene clip for cable fastening
- F female connectors.
- Waterproof case.
- RF shielded and CE approved (EN 50083).
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663405172 |
| CHARACTERISTICS | |
| Type | Amplifier - mast |
| Max. Output level (@ -60dB IMD) | 104 dBµV |
| FREQUENCY | |
| Input 1 - frequency | 174...230 / 470...694 MHz |
| Input 1 - band | BIII(DAB) + UHF |
| Input 1 - channels | 5...12 / 21...48 |
| LTE protection | @ 700Mhz |
| GAIN | |
| Input 1 - gain | 10...25 / 15...30 dB |
| Input 1 - noise figure | <4.0 dB |
| LOSS | |
| Rejection @ 714 MHz (Ch. 51) | 17.0 (@gain=30dB) dB |
| RETURN LOSS | |
| Return Loss | 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| LED indicator | Green |
| DC Operating voltage | 24 VDC |
| DC Current consumption | 45 mA |
| CONNECTORS | |
| Number of inputs | 1 |
| Number of outputs | 2 |
| Connector Type | F-female |
| MECHANICAL | |
| Product Height | 115 mm |
| Product Depth | 60 mm |
| Product Width | 107 mm |
| Colour | RAL 7016 - Anthracite grey |
| Packing QTY | 1 |
| Packaging Height | 0,060 m |
| Packaging Width | 0,120 m |
| Packaging Depth | 0,110 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,230 kg |
| Tara Weight | 0,025 kg |
| Total Weight | 0,255 kg |
