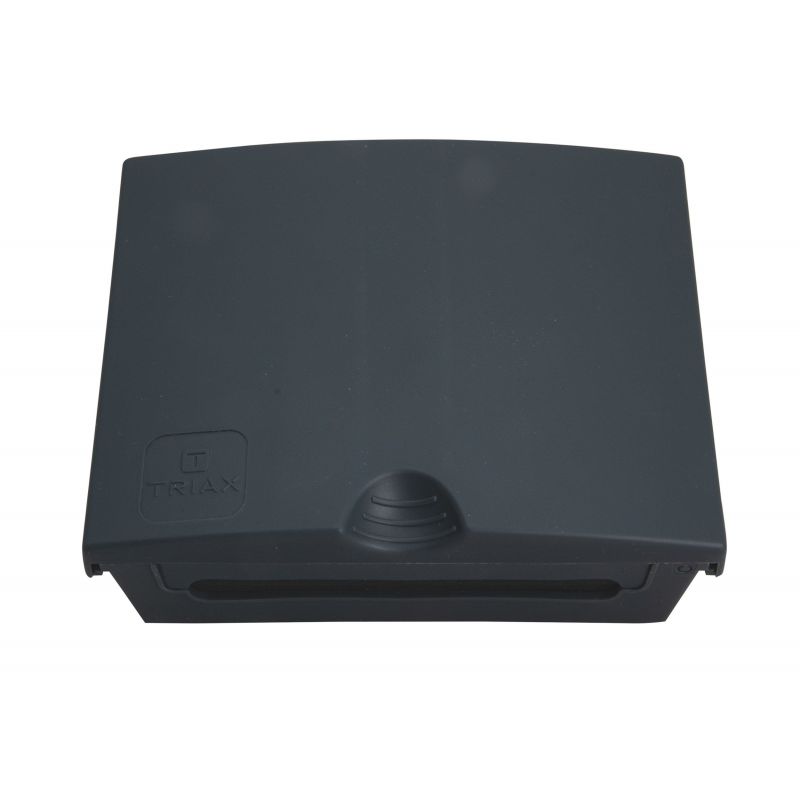

MFA 627 2 Inputs LTE 700 MHz Multiband mast amplifier Triax
2 input mast amplifier. Gain: input 1 (20 - 35 dB) input 2 (12 - 22 dB). Output level: 108 dBµV. F female connectors. Waterproof case. RF shielded and CE approved (EN 50083).
€36.91
Tax included
Reference
triax-340527
Brand
Triax
MFA 627 2 Inputs LTE 700 MHz Multiband mast amplifier Triax
€36.91
MFA 627- mast amplifier 2 inputs
Features
- 24 VDC supply
- 2 input mast amplifier
- LTE protection LTE 700
- Gain: input 1 (20 - 35 dB) input 2 (12 - 22 dB)
- Output level: 108 dBµV.
- High resistance to external disturbances
- High resistance to the corrosion
- Optimized mechanism for easy installation
- Optimized mechanism for easy installation
- Neoprene clip for cable fastening
- F female connectors.
- Waterproof case.
- RF shielded and CE approved (EN 50083).
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663405271 |
| CHARACTERISTICS | |
| Type | Amplifier - mast |
| Max. Output level (@ -60dB IMD) | 108 dBµV |
| FREQUENCY | |
| Input 1 - frequency | 174...230 / 470...694 MHz |
| Input 1 - band | BIII(DAB) + UHF |
| Input 1 - channels | 5...12 / 21...48 |
| Input 2 - frequency | 87...108 MHz |
| Input 2 - band | BII |
| Input 2 - channels | FM |
| LTE protection | @ 700Mhz |
| GAIN | |
| Input 1 - gain | 20...35 dB |
| Input 1 - noise figure | 2.5 (@174...230MHz) 2.0 (@470...694Mhz) dB |
| Input 2 - gain | 12...22 dB |
| Input 2 - noise figure | 2.5 dB |
| LOSS | |
| Rejection @ 714 MHz (Ch. 51) | 17.0 (@gain=30dB) dB |
| RETURN LOSS | |
| Return Loss | 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| LED indicator | Green |
| DC Operating voltage | 24 VDC |
| DC Current consumption | 43 mA |
| CONNECTORS | |
| Number of inputs | 2 |
| Number of outputs | 1 |
| Connector Type | F-female |
| MECHANICAL | |
| Product Height | 115 mm |
| Product Depth | 60 mm |
| Product Width | 137 mm |
| Colour | RAL 7016 - Anthracite grey |
| Packing QTY | 1 |
| Packaging Height | 0,060 m |
| Packaging Width | 0,120 m |
| Packaging Depth | 0,140 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,290 kg |
| Tara Weight | 0,040 kg |
| Total Weight | 0,330 kg |
