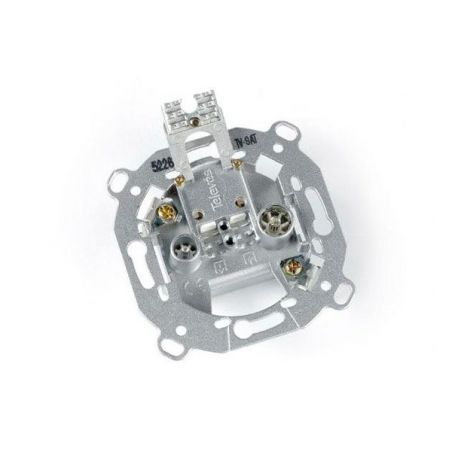

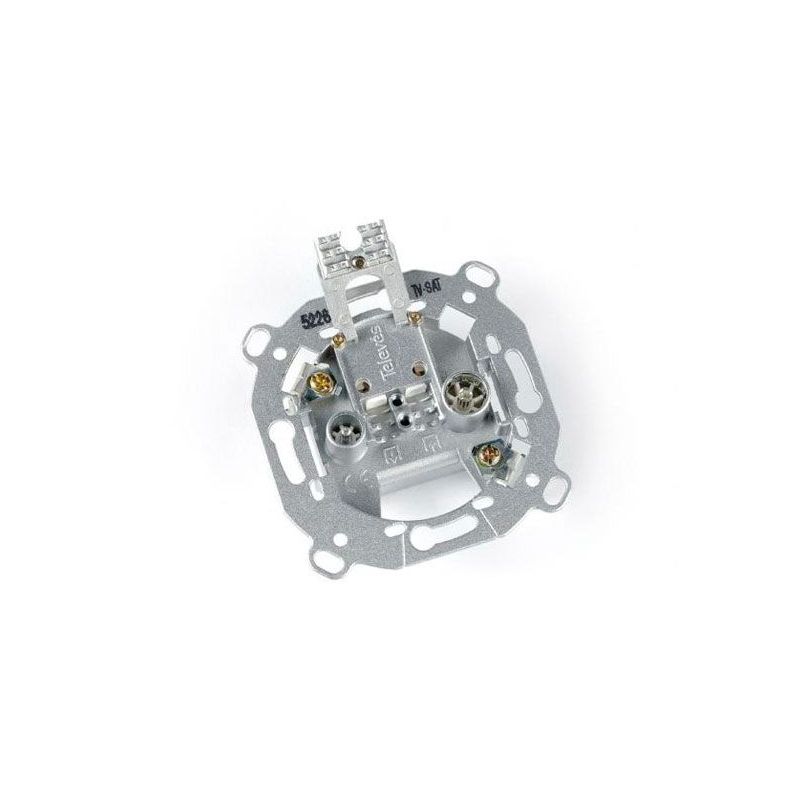

Separator terminal connector with two CEI connectors. The one on the left is a male CEI for FM (radio) and terrestrial TV and the one on the right is a female CEI for satellite TV (FI).
It incorporates anti-LTE filtering (channel 60).

Stands out for

• High rejection separator filter: the SAT signal is filtered in the male CE/FM TV connector, and the terrestrial FM/TV is filtered in the female CEI satellite connector.
• Automated robotized online manufacturing
• High shielding
• Great isolation between departures

Features

• With claws
• Made in Zamak, high resistance
• DC step from the SAT connector to the input
• Compatible with coaxial cables with cover diameter Ø 5 ... 7mm
• Improved live tightening design to meet the specifications of cable operators.
• Separate the TV/FM - SAT bands.
• Improved shielding.
• Lost: 1.5 dB
• I live in a fast and safe setting.
• Firm subjection of the living.
• Wide margin in the length of the live (5-15mm) that makes short between live and mesh difficult.
• Flange in upper part with 150º opening.
• The flange consists of 3 serrated rows of 9 mm for a perfect fastening of the mesh.
• Frequency: 5-2150 MHz.
• Live connection by simple push, do not tighten any screws.
• Allows the visualization of the connection.
• Supports live diameters from Ø 0.65 to Ø 1.2 mm.
• Comply with European Directives 2004/108/CEE and 2006/95/CEE
• The data connection sockets are DOCSIS 3.0 compatible
• LTE
