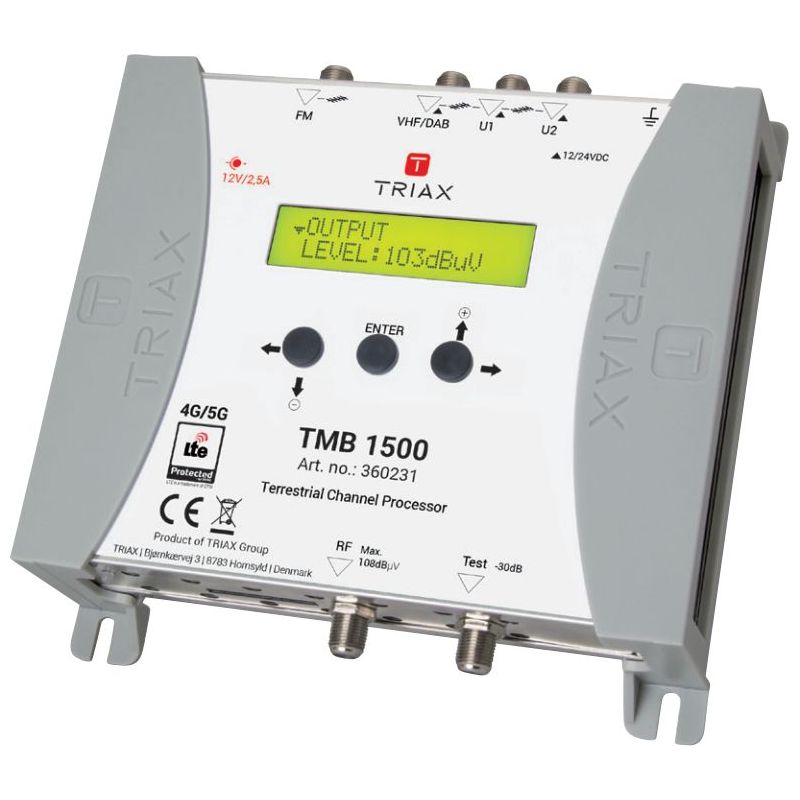

Triax TMB 1500 Central programmable amplifier 4 inputs FM/DAB-VHF/2xUHF LTE 700-5G/800-4G 60dB 15 filters

The TMB 1500 is the successor to the TMB 1000 Programmable PBX. New features and benefits have been added.

The TMB 1500 can be used in large multi-home television distribution networks to deliver excellent image quality on all television screens.

New and updated features

• Convert any input channel of the VHF or UHF band to any output channel in the order you want.
• More than 50 MUX DVB-T / T2 can be processed
• Greater selectivity for the suppression of interference from adjacent channels.
• Higher gain 60 dB
• Higher output level 115 dBµV (IMA -60 dB)
• Higher gain and output level
• Adjustable channel bandwidth.

The TMB 1500 programmable terrestrial processor can receive TV signals from various terrestrial antennas. It combines filtering, conversion, level equalization and amplification of broadcast channels. All this within a very compact unit to transmit the signals in the coaxial TV distribution network in residential buildings, shopping centers, hotels, etc.

Features

• 4 antenna inputs: FM / DAB-VHF / 2xUHF
• Automatic selection of LTE 700-5G / 800-4G reject filters
• CAG in real time and separately on all multiplexes
• 50 dB rejection of the adjacent channel
• Flex Matrix with 15 filters per 1 ... 6 MUX for processing individual channels to any output channel.
• Option to compensate for cable slope by reducing the FM and DAB-VHF output level relative to the UHF level.
• Access lock by security code.
• Switchable remote power 0/12/24 VDC.
