  • Central Programable Triax TMB100S 6 entradas/1 salidas Triax 55 dB 10 filtros LTE

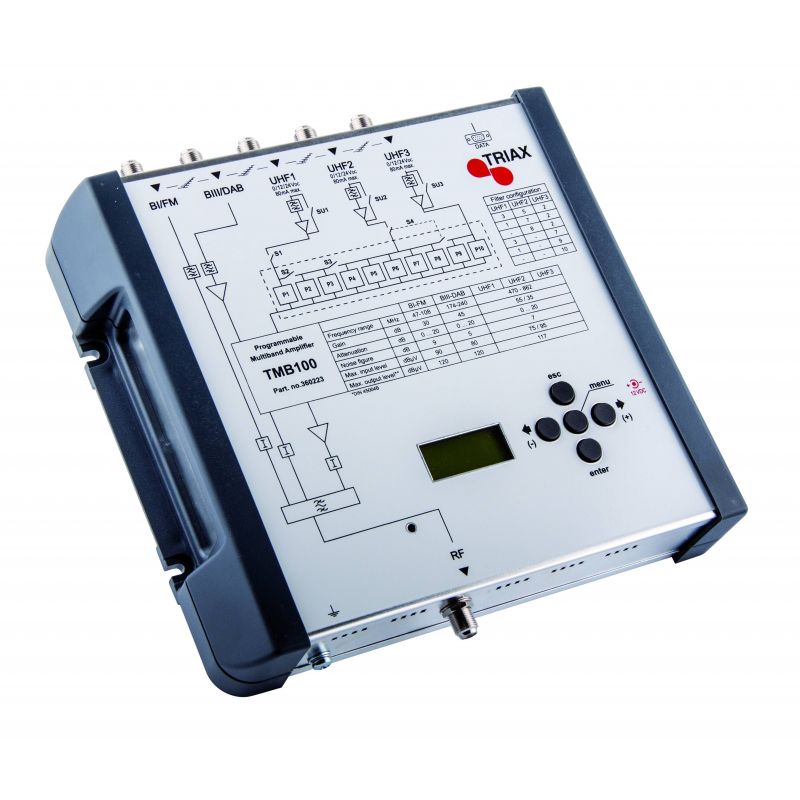

Triax TMB100 Central Programmable 5 inputs 1 outputs 55 dB 10 LTE filters

Interconnecting and amplifying selectively up to 5 different positioned TV antennas. This multi-band amplifier is ideal for interconnecting and amplifying of several aerial antennas in MATV plants. The amplifier uses the frequency-selective filtering and level matching of UHF channels. They are selectively combined with the VHF bands. TER (BI-FM, BIII-DAB, 3x UHF) 10x UHF filters.

€452.95
Tax included
Reference triax-360223
Brand Triax
Quantity
Available Now

Free shipping

Triax TMB100 Central Programmable 5 inputs 1 outputs 55 dB 10 LTE filters

€452.95

Programmable multiband Amplifier TMB 100 - TER (BI-FM, BIII-DAB, 3x UHF) 10x UHF filters

Interconnecting and amplifying selectively up to 5 different positioned TV antennas

This multi-band amplifier is ideal for interconnecting and amplifying of several aerial antennas in MATV plants. The amplifier uses the frequency-selective filtering and level matching of UHF channels. They are selectively combined with the VHF bands

Features

  • Easy programming directly via keypad at the amplifier, shown at the display
  • Very flexible with selective UHF filters, adjusting with bandwidth 1-7 channels (8-56 MHz)
  • Every UHF filter has separate adjustments like amplification and mid frequency
  • The activable AGC provides a constant for UHF and VHF Output level und stable operating conditions
  • Export or import of all device settings via RS 232 interface
  • Switchable short-circuit-protected remote feeding for UHF pre-amplifiers

Specifications

CHARACTERISTICS
Max. input level - FM 90 dBµV
Max. input level - BIII/DAB 80 dBµV
Max. input level - UHF 95 dBµV
Output level BIII/DAB - 170-230 MHz 120 dBµV
Output level UHF 117 dBµV
Output level @ 60dB IMD - UHF 117 dBµV
FREQUENCY
Frequency range BI/FM 47-108 MHz
Frequency range BIII/DAB 174-240 MHz
Frequency range UHF 470-862 MHz
Filter Bandwidth UHF 8-56 MHz
Filter Bandwidth VHF 7 MHz
Filter Selectivity @ 16 MHz 16 dB
Number of channel filters 10
Bandwidth UHF 8-56 MHz
Bandwidth VHF 7 MHz
GAIN
Gain - FM [47-108 MHz] 32 dB
Gain - DAB [170-230 MHz] 48 dB
Gain - UHF 1 [470-790 MHz] 55 dB
Gain - UHF 2 [470-790 MHz] 55 dB
Gain - UHF 3 [470-790 MHz] 55 dB
Noise figure BI/FM 9 dB
Noise figure UHF 7 dB
Noise figure VHF 5 dB
LOSS
Attenuation 0-20 dB
RETURN LOSS
Return Loss >8 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
AC Supply voltage 100...240 VAC
Power Consumption (typ.) 9...16 W
Operating temperature range -5 - +40 °C
Certification CE, RoHS2
Class A
Input with Remote Supply UHF 1, 2 ,3
LINE power current (max.) 80 mA
LINE power DC voltage (max.) 12/24 VDC
Remote Supply UHF1 12 - 24 / 80 V/mA
Remote Supply UHF2 12 - 24 / 80 V/mA
Remote Supply UHF3 12 - 24 / 80 V/mA
CONNECTORS
Number of inputs 5
Number of outputs 1
Connector Type F-female
MECHANICAL
Packaging Volume 0,000 m3
Net Weight 1,667 kg
Tara Weight 0,000 kg
Total Weight 1,667 kg
Packaging Height 0,000 m
Packaging Width 0,000 m
Packaging Depth 0,000 m
Depth (mm) 360 mm
Height (mm) 50 mm
Width (mm) 225 mm
