  • 5...782MHz LTE Filter (C21-59) Televes

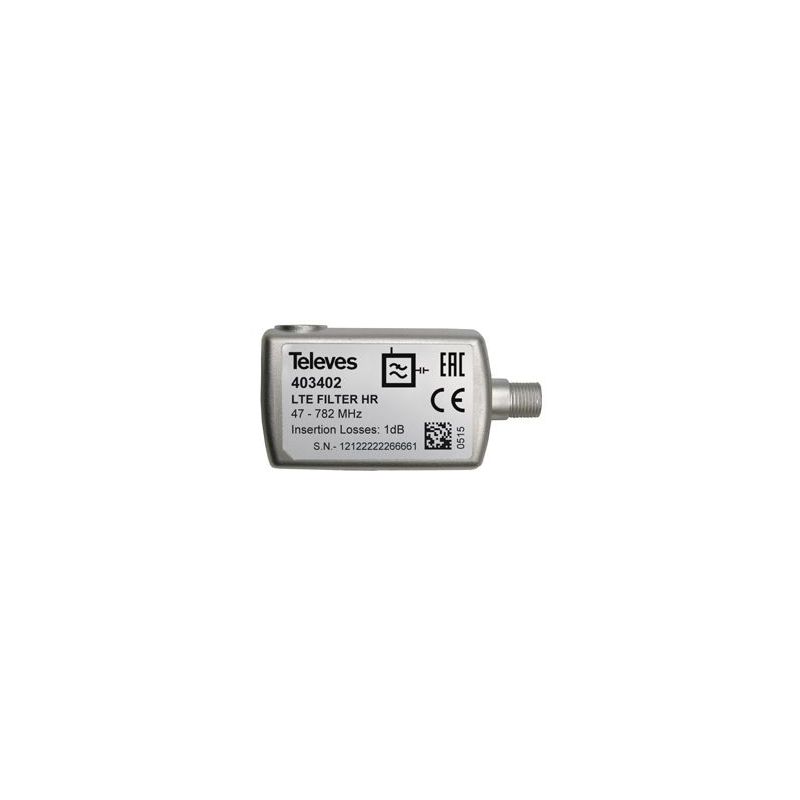

LTE Filter 5...782MHz (C21-59) Televes

Range of products to protect the UHF band allocated to TV services from interferences caused by the data transmission on the LTE band.

This product is replaced by the High Rejection LTE Filter (HR) "F" 47...694MHz VHF/UHF (C21-48) Interior LTE700/5G Televes

€27.06
Tax included
Reference televes-403402
Brand Televes
Quantity
Available in 24/48h

Free shipping
5...782MHz LTE Filter (C21-59) Televes

LTE Filter 5...782MHz (C21-59) Televes

€27.06
  • Range of products to protect the UHF band allocated to TV services from interferences caused by the data transmission on the LTE band.
  • Two types of LC filters with different performance in terms of rejection and performance for applications where channels above Ch58 are in use.
  • Three type of product for outdoor & indoor use, “F”, “IEC” and "easyF".
Reference  403402
 Connector type  F
 Bandwidth MHz 47-782
 Through Loss dB 1
 Rejected band MHz 791-862
 Isolation in the rejected band dB >26
 DC pass --
 Weight g 80
 Dimensions (Wid x Hei x Dep) mm 64 x 34 x 22,5
 Temperature ºC -5 ... +45
 Protection Index IP 20
