Microcavities selective filter LTE F 5-782MHz Televes
Breakthrough technology using microcavities and High Q resonant elements. The ultimate solution for any system where DTT and LTE signals coexist.
€65.47
Tax included
Reference
televes-403302
Brand
Televes

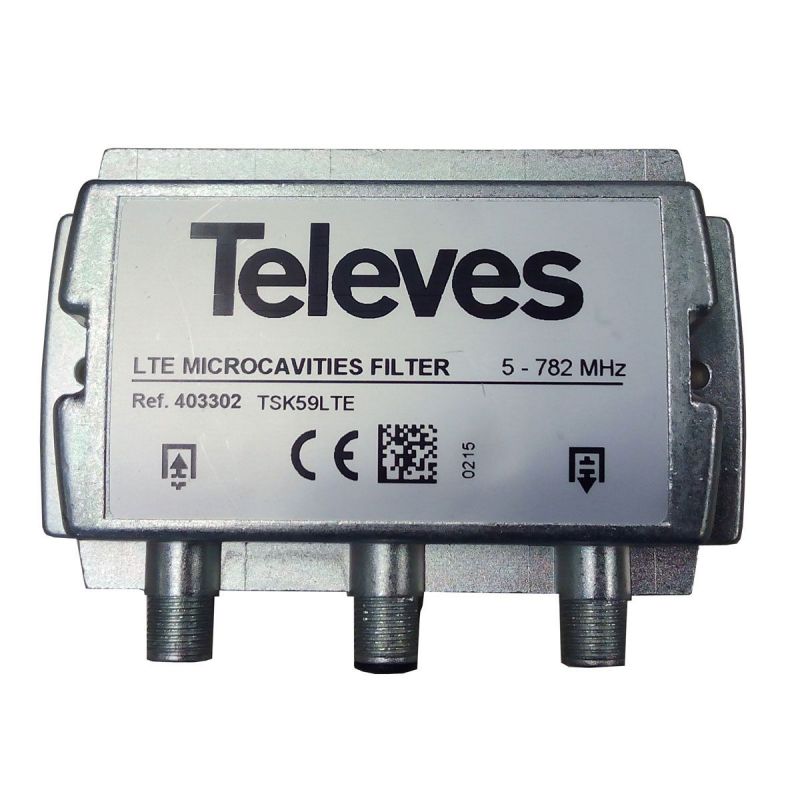

Microcavities selective filter LTE F 5-782MHz Televes
€65.47
Breakthrough technology using microcavities and High Q resonant elements. The ultimate solution for any system where DTT and LTE signals coexist.
Features
- Very high rejection to LTE signals, potentially disturbing DTT.
- Very low degradation of the DTT band.
- High stability to temperature changes and vibration.
- For indoor or outdoor use (using weatherproof case ref. 4163).
Specifications
| Reference | 403302 | |
| Pass band | MHz | 5-782 |
| Attenuation | dB | 1 |
| Attenuation in the rejected band 791-821 MHz | dB | > 40 |
| Attenuation in the rejected band 832-862 MHz | dB | > 15 |
| In/Out | nº | 1 / 1 |
| Current pass | Vdc | -- |
| Dimensions (Wid x Hei x Dep) | mm | 100 x 70 x 30 |
| Weight | g | 200 |
| Protection level | IP | 20 |
| Operating temperatures | ºC | -5...+45 |
