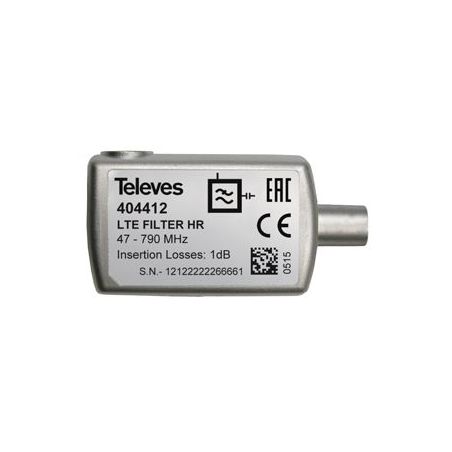

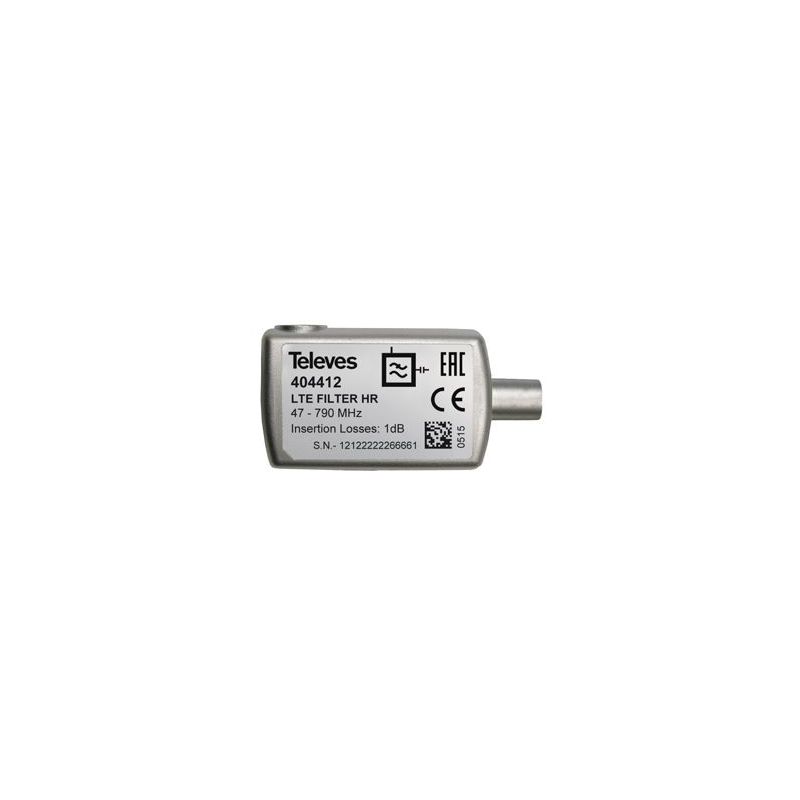

LTE Selective Filter 5...790MHz Televes

Range of products to protect the UHF band allocated to TV services from interferences caused by the data transmission on the LTE band.

This product is replaced by the High Rejection LTE Filter (HR) "CEI" 47...694MHz VHF/UHF (C21-48) Indoor LTE700/5G Televes

€20.90
Tax included
Reference televes-404412
Brand Televes
Quantity
Available in 24/48h

Free shipping
5...790MHz LTE Selective Filter Televes

LTE Selective Filter 5...790MHz Televes

€20.90
  • Range of products to protect the UHF band allocated to TV services from interferences caused by the data transmission on the LTE band.
  • Two types of LC filters with different performance in terms of rejection and performance for applications where channels above Ch58 are in use.
  • Three type of product for outdoor & indoor use, “F”, “IEC” and “EasyF”.

Specs

Reference  404412
 Connector type  IEC
 Bandwidth MHz 5-790
 Through Loss dB 1
 Through loss at the edge of the frequency range dB 6
 Rejected band MHz 793-862
 Isolation in the rejected band dB >20
 Dimensions (Wid x Hei x Dep) mm 64 x 34 x 22,5
 Protection Index IP 20
