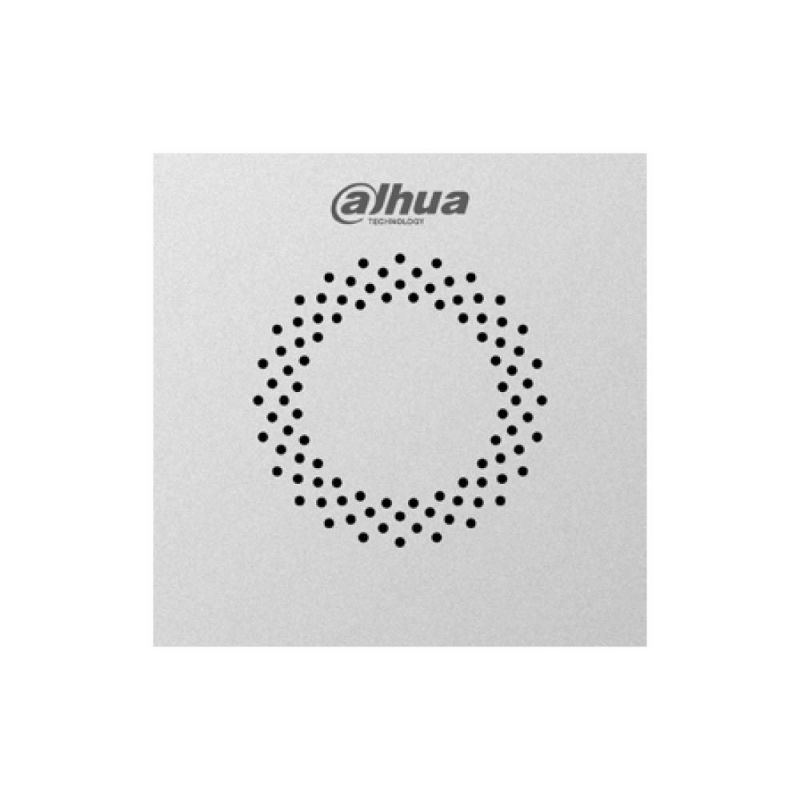

Dahua VTO4202F-MA. Audio module for modular video intercom system of the VTO4202F-X series by Dahua. Built-in omnidirectional microphone and speaker. Compatible with 2-wire interface and RJ45. Anodized aluminum. IP65, IK07. 12V DC PoE Vto4202f-ma.

Features

• Audio module for VTO4202F-X series video intercom system
• Built-in microphone and speaker
• The modules make the device have a great expandability
• Compatible with 2-wire interface and RJ45 interface
• Anodized aluminum panel
• IP65

• IK07



Specs

• Noise suppression and echo cancellation
• PCM audio compression, G.711A, G.711U
• Omnidirectional microphone
• Incorporates speaker
• Door control
• 1 RS485 half-duplex port
• 1 relay output
• 1 feedback channel
• 1 exit button
• Tamper
• 10M / 100Mbps Ethernet network interface
• 12V DC power supply, 2 wires
• Consumption: 12W
• Supports PoE (802.3af)
• IP65
• IK07
• Built in anodized aluminum
• Working temperature -20C ~ + 60 ° C
• RH 10% ~ 90%
• Dimensions: 100 (W) x 100 (H) x 36 mm
• Weight: 350g
