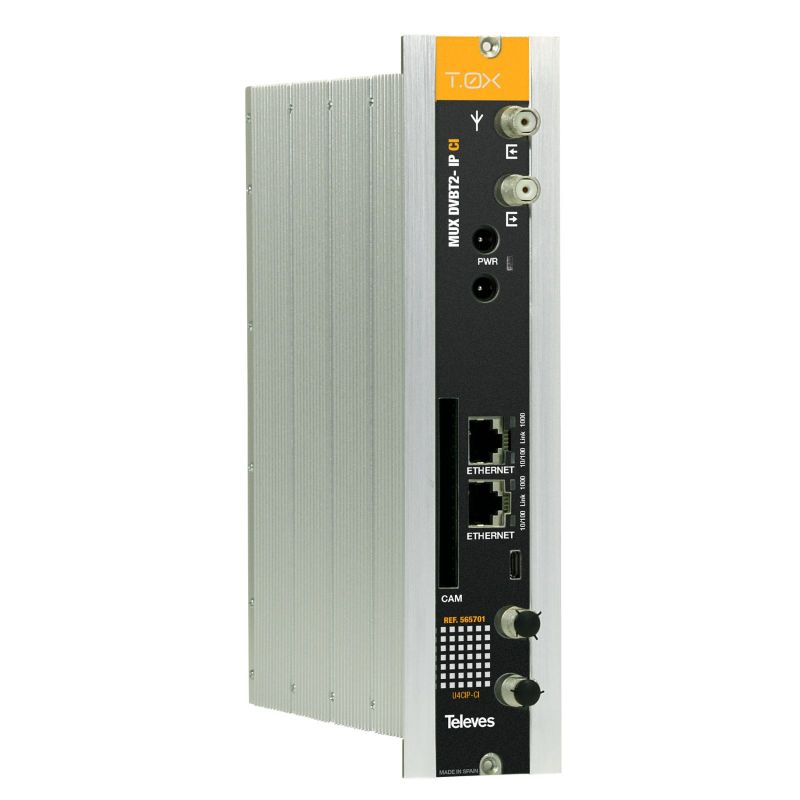

Streamer generating an IP encapsulated output from the multiplexing of the services available in 4 different DVB-T or DVB-T2 muxes.

The encrypted channels are transformed into free IP services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free visualization.

The system will encompass a power supply and some streamer modules depending on the number of services to be distributed.

Highlights

• 32 IP streams SPTS
• DiSEqC 1.0 for multiswitches control
• Service decryption by insertion of a PCMCIA module
• Access to the headend configuration through a self-created WiFi network (using the kit with ref.216802)
• Internal switch for IP out Daisy chain of serveral modules
• Embedded user web interface for module configuration:
• Configuration of the entire headend selecting one of the module as a master
• Automatic detection of the modules that are connected to the master
• Cloning function to replicate configurations between modules and headends

Main features

• Selection of services among the 4 input muxes to distribute in streaming
• Provides flow information of each service to estimate the global output flow of the module
• Device monitoring and signal status LEDs

Specifications
