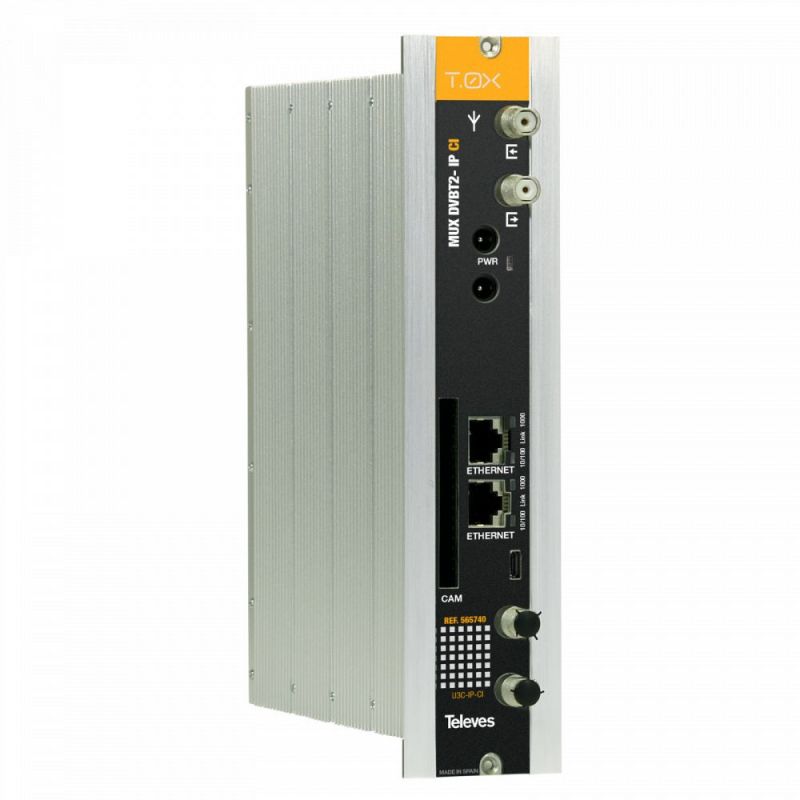

Streamer with remultiplexing DVBT/T2 - IP, with CI Re-encryption Pro: Idiom for DRM solution Televes
Streamer that generates an encapsulated IP output, from the multiplexing of services available in 4 DVB-T or DVB-T2 muxes. Through the CI interface and the corresponding CAM module, the encrypted satellite channels are transformed into free IP services. Depending on the CAM used (standard / professional), one or more services can be opened for open viewing.
€1,815.00
Tax included
Reference
televes-565740
Brand
Televes
Streamer with remultiplexing DVBT/T2 - IP, with CI Re-encryption Pro: Idiom for DRM solution Televes
€1,815.00
Streamer generating an IP encapsulated output from the multiplexing of the services available in 4 different DVB-T or DVB-T2 muxes.
The encrypted channels are transformed into free IP services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free visualization.
The module allows to re-encrypt the decrypted IP services with the CAM, with a DRM (Digital Rights Management) solution for a secure content distribution.
The system will encompass a power supply and some streamer modules depending on the number of services to be distributed.
Highlights
- 32 IP streams SPTS
- DiSEqC 1.0 for multiswitches control
- Service decryption by insertion of a PCMCIA module
- Outbound IP streaming encryption with DRM solutions (Pro: Idiom)
- Access to the headend configuration through a self-created WiFi network (using the kit with ref.216802)
- Internal switch for IP out Daisy chain of serveral modules
- Embedded user web interface for module configuration:
- Configuration of the entire headend selecting one of the module as a master
- Automatic detection of the modules that are connected to the master
- Cloning function to replicate configurations between modules and headends
Main features
- Selection of services among the 4 input muxes to distribute in streaming
- Provides flow information of each service to estimate the global output flow of the module
- Device monitoring and signal status LEDs
Specifications
| ENTRADA DVB-T/DVB-T2 |
Frecuencia de entrada | MHz | 150...862 | |
| Pasos de frecuencia | kHz | 125, 166 (Selec.) | ||
| Conectores de entrada y salida | “F” hembra | |||
| Impedancia de entrada | Ω | 75 | ||
| Alimentación preamplificadores/previos | Vdc | 0, 12, 24 (Selec.) | ||
| Nivel de entrada | dBm | -60 a -20 | ||
| Pérdidas de paso (típ.) | dB | < 1,5 | ||
| Ancho de banda | DVB-T | MHz | 6, 7, 8 | |
| DVB-T2 | 1.7, 5, 6, 7, 8 | |||
| ROE de entrada | dB | 10 | ||
| SALIDA IP | Modo | Multicast/Unicast | ||
| Formato | SPTS | |||
| Protocolo | IPv4, UDP, DHCP | |||
| Número de servicios IP | Máx. 32 (unencrypted) Máx. 8 (Pro:Idiom DRM) |
|||
| Conectores | 2 X RJ45 (1 GB Ethernet 1000 BaseT) | |||
| GENERAL | Consumo corriente 24Vdc (Base+CAM+Previo) | mA | 700 (500+100+100) | |
| Índice protección | IP | IP20 | ||
| Rango de temeperatura | ºC | 0...45 | ||
