Streamer with remultiplexing DVBS/S2 - IP, with CI Televes

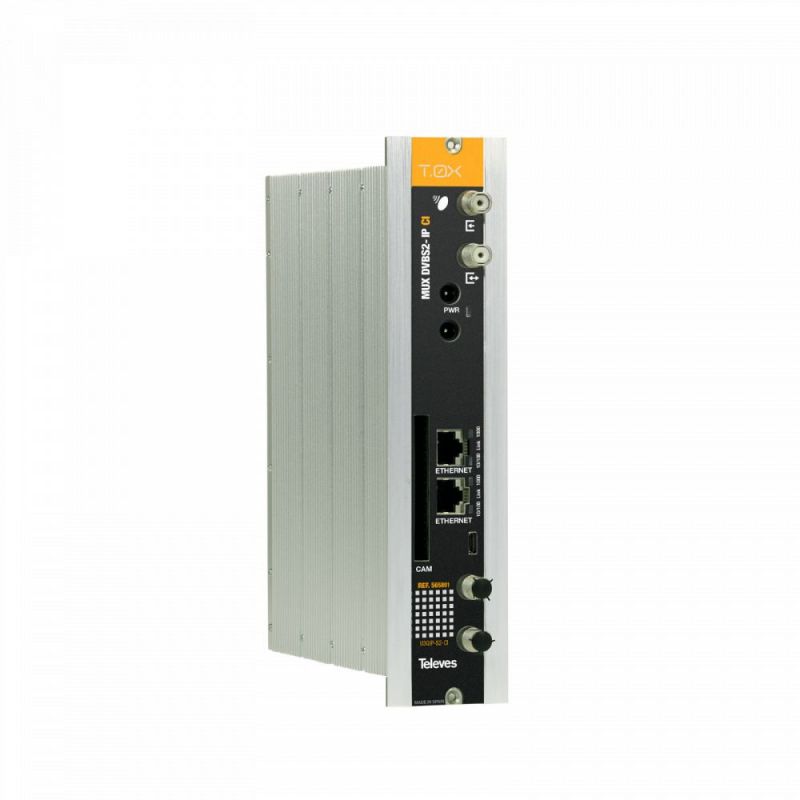

Streamer generating an IP encapsulated output from the multiplexing of the services available in up to 3 different TV SAT transponders. These may be extracted from 2 different satellites (2 independent SAT inputs), or from a single satellite, using the headend's input loop.

€1,604.46
Tax included
Reference televes-565801
Brand Televes
Quantity
Available in 24/48h

Free shipping

Streamer with remultiplexing DVBS/S2 - IP, with CI Televes

€1,604.46

Streamer generating an IP encapsulated output from the multiplexing of the services available in up to 3 different TV SAT transponders.

These may be extracted from 2 different satellites (2 independent SAT inputs), or from a single satellite, using the headend's input loop.

The encrypted satellite channels are transformed into free IP services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free visualization.

The system will encompass a power supply and some streamer modules depending on the number of services to be distributed.

Highlights

  • 32 IP streams SPTS
  • DiSEqC 1.0 for multiswitches control
  • Service decryption by insertion of a PCMCIA module
  • Access to the headend configuration through a self-created WiFi network (using the kit with ref.216802)
  • Internal switch for IP out Daisy chain of serveral modules
  • Embedded user web interface for module configuration:
  • Configuration of the entire headend selecting one of the module as a master
  • Automatic detection of the modules that are connected to the master
  • Cloning function to replicate configurations between modules and headends

Main features

  • Selection of services among the 3 input muxes to distribute in streaming
  • Provides flow information of each service to estimate the global output flow of the module
  • Device monitoring and signal status LEDs

Specifications

SATELLITE
DEMODULATOR		 Input frequency MHz 950...2150
Symbol rate Mbaud 2 - 45
 Frequency steps MHz 1
 In/Out connectors tipo “F” female
 Input impedance Ω 75
 LNB powering Vdc/KHz 13 - 17 - OFF / 22KHz (ON-OFF)
 Satellite selection (DiSEqC) Port A, B, C, D
 Through losses (typ.) dB < 1,5
 Modulation DVB-S2 QPSK, 8PSK
DVB-S QPSK
 FEC inner code LDPC 9/10, 8/9, 5/6, 4/5, 3/4, 2/3, 3/5, 1/2
 FEC outer code Bose-Chaudhuri-Hocquenghem
 Roll-Off factor % 20, 25, 35
Input SWR (min.) dB 10
 IP OUT  Mode Multicast/Unicast
 Format SPTS
 Protocol IPv4, UDP, DHCP
 Number of IP services Max. 32
 Connectors 2 X RJ45 (1 GB Ethernet 1000 BaseT)
 GENERAL  Consumption 24Vdc (Base+CAM+LNB) mA 1050 (450+100+250/LNB)
 Protection index IP IP20
 Temperature range ºC 0...45
