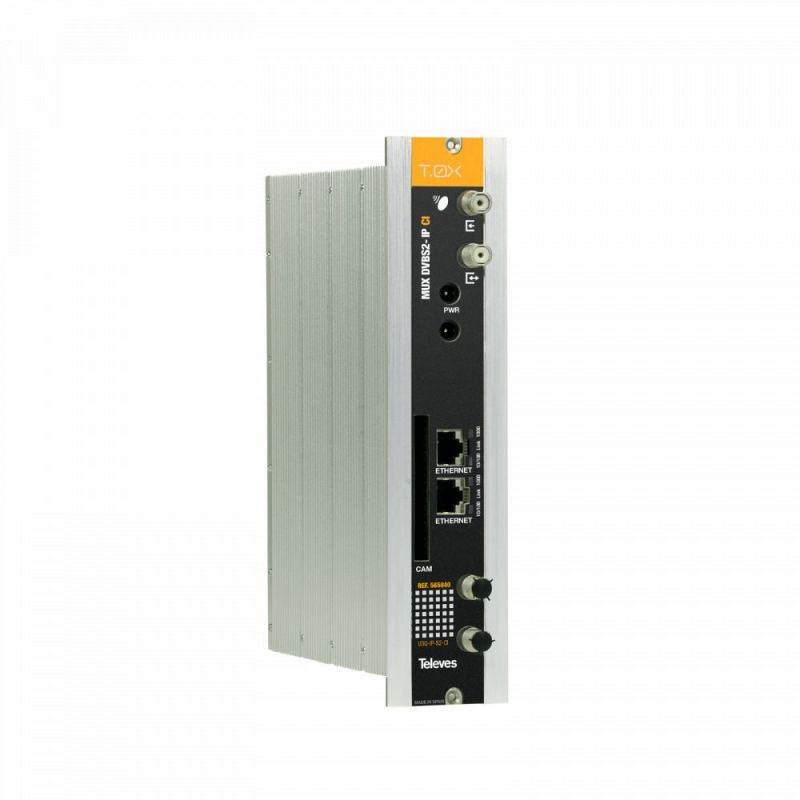

Streamer with remultiplexing DVBS/S2 - IP, with CI Re-encryption Pro: Idiom for DRM solution Televes

Streamer that generates an encapsulated IP output, from the multiplexing of available services in up to 3 different SAT TV transponders. These can be extracted from 2 different satellites (2 independent SAT-FI inputs), or from a single satellite through the input loop itself at the headend.

€1,815.00
Tax included
Reference televes-565840
Brand Televes
Quantity
Available in 24/48h

Free shipping

Streamer with remultiplexing DVBS/S2 - IP, with CI Re-encryption Pro: Idiom for DRM solution Televes

€1,815.00

Streamer that generates an encapsulated IP output, from the multiplexing of services available in up to 3 different SAT TV transponders.

These can be extracted from 2 different satellites (2 independent SAT-FI inputs), or from a single satellite through the input loop itself at the headend.

Through the CI interface and the corresponding CAM module, the encrypted satellite channels are transformed into free IP services. Depending on the CAM used (standard / professional), one or more services can be opened for open viewing.

The module allows to re-encrypt the decrypted IP services with the CAM, with a DRM (Digital Rights Management) solution for a secure content distribution.

The system will consist of a T.0X power supply and various streamer modules depending on the number of services to be distributed.

Highlights

  • 32 IP streams SPTS
  • DiSEqC 1.0 for multiswitches control
  • Service decryption by insertion of a PCMCIA module
  • Outbound IP streaming encryption with DRM solutions (Pro: Idiom)
  • Access to the headend configuration through a self-created WiFi network (using the kit with ref.216802)
  • Internal switch for IP out Daisy chain of serveral modules
  • Embedded user web interface for module configuration:
  • Configuration of the entire headend selecting one of the module as a master
  • Automatic detection of the modules that are connected to the master
  • Cloning function to replicate configurations between modules and headends

Main features

  • Selection of services among the 3 input muxes to distribute in streaming
  • Provides flow information of each service to estimate the global output flow of the module
  • Device monitoring and signal status LEDs

Specifications

DEMODULADOR

SATÉLITE

 Frecuencia de entrada MHz 950...2150
Velocidad de símbolo Mbaud 2 - 45
Pasos de frecuencia MHz 1
Nivel de entrada dBm -60...-20
Conectores de entrada y salida tipo “F” hembra
Impedancia de entrada Ω 75
Alimentación LNB Vdc/KHz 13 - 17 - OFF / 22KHz (ON-OFF)
Selección de satélite (DiSEqC) Port A, B, C, D
Pérdidas de paso (typ.) dB < 1,5
Modulación DVB-S2 QPSK, 8PSK
DVB-S QPSK
FEC interno LDPC 9/10, 8/9, 5/6, 4/5, 3/4, 2/3, 3/5, 1/2
FEC externo Bose-Chaudhuri-Hocquenghem
Factor Roll-Off % 20, 25, 35
R.O.E. entrada (mín.) dB 10
SALIDA IP Modo Multicast/Unicast
Formato SPTS
Protocolo IPv4, UDP, DHCP
Número de servicios IP Máx. 32 (sin encriptado)
Máx. 8 (Pro:Idiom DRM)
Conectores 2 X RJ45 (1 GB Ethernet 1000 BaseT)
GENERAL Consumo corriente 24Vdc (Base+CAM+LNB) mA 1050 (450+100+250/LNB)
Índice protección IP IP20
Rango de temeperatura ºC 0...45
