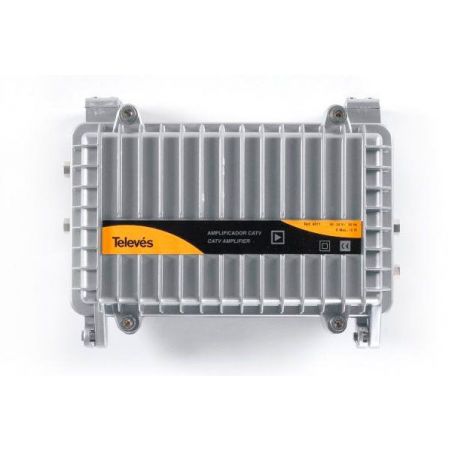

Outdoor R5-65 MHz hybrid AC line powered Televes
Amplifier for outdoor CATV applications. The devices have to be powered through the coaxial line.
€602.12
Tax included
Reference
televes-4513
Brand
Televes
Outdoor R5-65 MHz hybrid AC line powered Televes
€602.12
Amplifier for outdoor CATV applications. The devices have to be powered through the coaxial line.
- Outdoor weatherproof aluminium chassis.
- Amplifier configuration options:
- Line power input/output.
- Extra selectable amplifier module (gain 10 dB).
- Pre-emphasis, attenuation, gain, both in the Forward and return path.
- 5/8 connectors.
Specs
| Reference | 4513 | ||||||
| Transmission Path | Return | Forward | |||||
| Frequency range | MHz | 5-65 | 87,5-862 | ||||
| Gain | dB | 12 | 36 | ||||
| Gain adjustment range | dB | 0-20 | 0-20 | ||||
| Input equalizer | dB | - | 0-20 | ||||
| Slope adjustment | dB | - | 0-20 | ||||
| Output level | DIN45004B | dBμV | 112 | 121 | |||
| EN50083 | IMD2 | - | 113 | ||||
| CTB, CSO, XMOD | - | 105 | |||||
| Noise figure | dB | - | 8 | ||||
| Power supply | Vac | 40...60 | |||||
| Through current Max Out <- -> In | A | 5 | |||||
| AC Power consumption | W | 15 | |||||
| Protection Index | IP | 67 | |||||
| Dimensions (Wid x Hei x Dep) | mm | 278 x 207 x 100 | |||||
