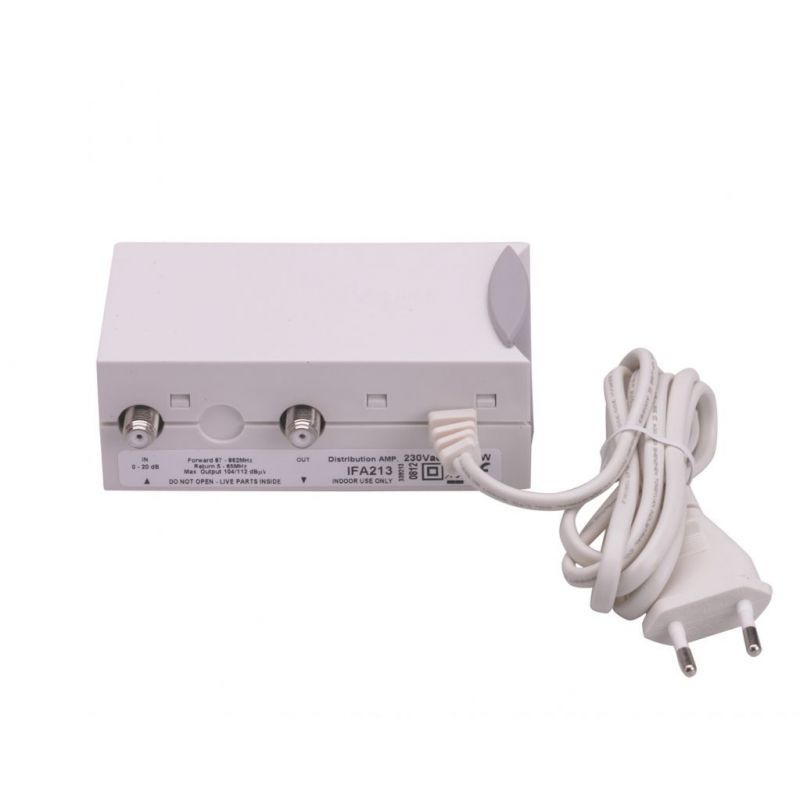

Triax IFA 213 Indoor Amplifier TDT / CABLE 20 dB 1 output
IFA 213 amplifier with 5 - 65 MHz return channel. MATV / SMATV low density channel amplifier distributes a limited number of powerful cable television signals to your home. Despite its high performance and effective protection, the IFA amplifiers from Triax IFA are cost-effective and quick to assemble indoors. Ideal for different types of MATV / SMATV solution.
€73.69
Tax included
Reference
triax-339213
Brand
Triax
Triax IFA 213 Indoor Amplifier TDT / CABLE 20 dB 1 output
€73.69
IFA 213 amplifier with 5 - 65 MHz return channel. MATV / SMATV low density channel amplifier distributes a limited number of powerful cable television signals to your home. Despite its high performance and effective protection, the IFA amplifiers from Triax IFA are cost-effective and quick to assemble indoors. Ideal for different types of MATV / SMATV solution.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663392137 |
| CHARACTERISTICS | |
| Linearity return | ± 1.0 dB |
| Output level CSO @ 60 dB IMD | 96.0 dBµV |
| Output level CTB @ 60 dB IMD (42 ch) flat | 96.0 dBµV |
| Output level IMD 2, EN 50083-3 | 104.0 dBµV |
| Output level IMD 3, EN 50083-5 | 112.0 dBµV |
| Return Path | 5...65 MHz |
| FREQUENCY | |
| Frequency range | 87...862 MHz |
| GAIN | |
| Gain | 0...20 dB |
| Noise figure | < 6.0 (typ. 5.5) dB |
| LOSS | |
| Attenuation | 0...18 dB |
| Through loss return | 1.0 dB |
| ELECTRICAL | |
| Linearity | ± 1.5 dB |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Certification | CE |
| Operating temperature range | 0...+50 °C |
| AC Supply voltage | 230 ± 10% VAC |
| Power Consumption (typ.) | 3.0 W |
| CONNECTORS | |
| Connector Type | F-female |
| Number of outputs | 1 |
| MECHANICAL | |
| Product Depth | 61 mm |
| Packaging Depth | 1,200 m |
| Packaging Height | 0,450 m |
| Total Weight | 0,336 kg |
| Packaging Width | 0,900 m |
| Net Weight | 0,299 kg |
| Packing QTY | 1 |
| Remarks | EN 50083 Part 3 CTB (Composite triple beat) @ 60 dB IMR, CENELEC-raster 42 channels |
| Tara Weight | 0,037 kg |
| Packaging Volume | 0,486 m3 |
| Product Width | 118 mm |
| Product Height | 44 mm |
