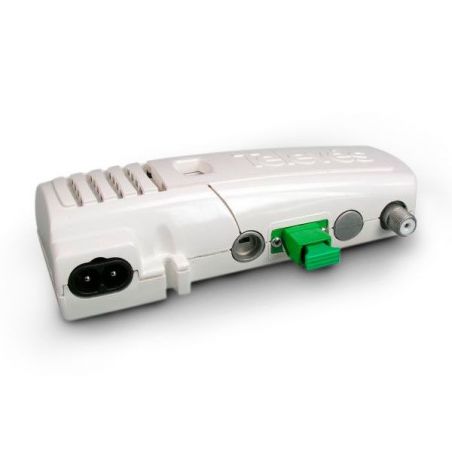

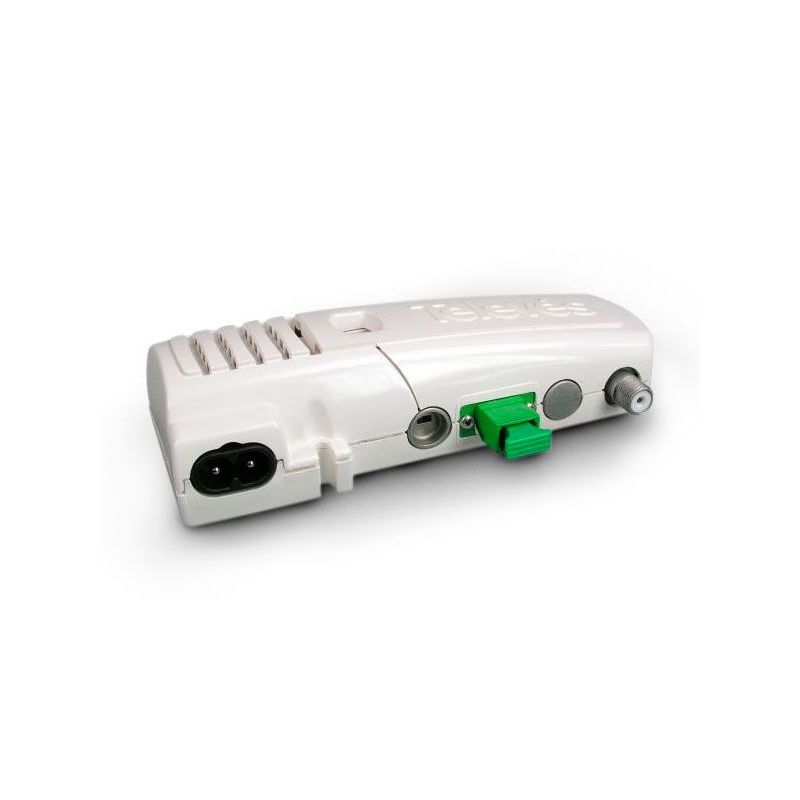

Domestic F.O. Rx MATV "SC/APC" 1550nm OLC Televes
The domestic fiber optic receiver can convert into its original RF format the TV signals which were previously converted into optical for their transmission through an optical network.
€162.37
Tax included
Reference
televes-231111
Brand
Televes
Domestic F.O. Rx MATV "SC/APC" 1550nm OLC Televes
€162.37
The domestic fiber optic receiver can convert into its original RF format the TV signals which were previously converted into optical for their transmission through an optical network.
Due to the OLC (Optical Level Control), it will balance the output signal regardless of the number of channels.
- Includes OLC (Optical Level Control), , the device automatically adjusts its parameters in order to achieve a balanced signal at the output and this signal level won't depend on the number of TV channels being transmitted.
- Output C/N > 52dB.
- Low consumption (1,7W).
- Ideal for RF Overlay / FTTx applications.
- Provides information, a set of LED lights will indicate the input optical power.
- Compact, size of a domestic amplifier.
Specs
| Reference | 231110 | |
| RF output | ||
| Conectors | F | |
| Bandwidth | Mhz | 47 - 1006 |
| Flatness | dB | ±1,5 |
| Automatic output level | dBμV | 80 |
| C/N | dB | >51 |
| Optical input | ||
| Wavelength | nm | 1200-1600 |
| Detection bandwidth | Mhz | 1-3000 |
| OLC range | dBm | -8...+1 |
| Max. Input optical power | dBm | 2 |
| Min. Input recommended power | dBm | -10 |
| Input connector | SC/APC | |
| General | ||
| Power | Vac | 196...264 |
| Maximum consumption | W | 1,7 |
| Dimensions (W x H x D) | mm | 145 x 60 x 35 |
| Protection index | IP | 20 |
