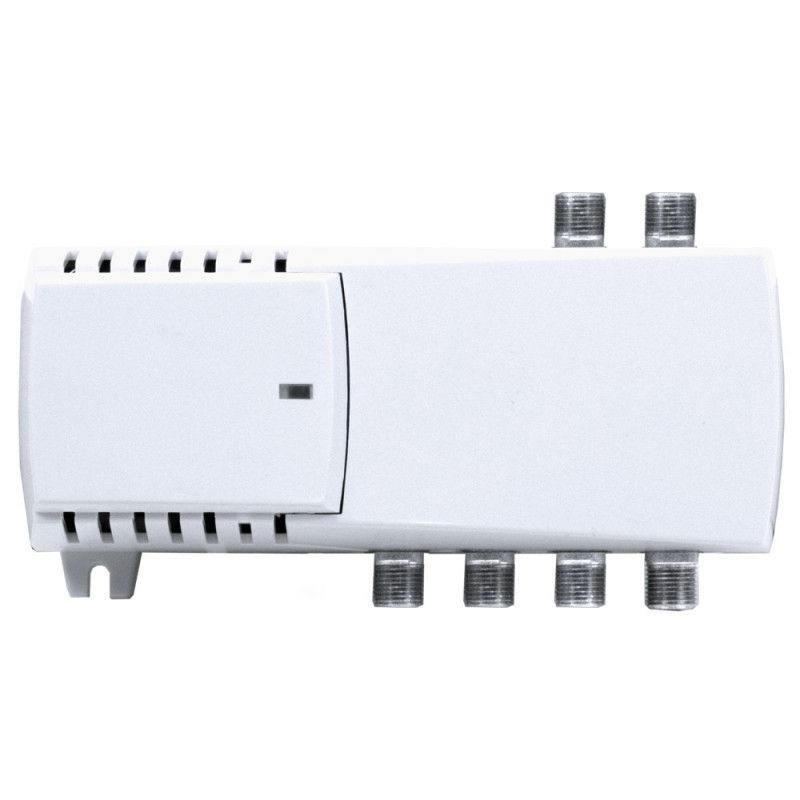

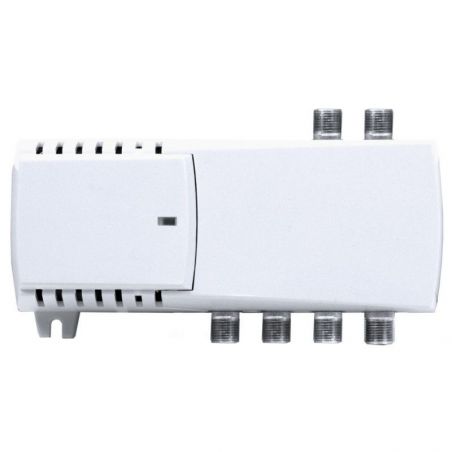

Indoor Amplifier TDT / CABLE Terra 20 dB 4 outputs

Features

• Terrestrial TV amplifier and FM radio.
• Gain adjustment
• Screening Die-cast
• Intended for indoor use
• 4 exits + Test output -20dB. type F.
• F male connectors, not included

Specifications

• Frequency range 47-862MHz
• Gain 47 MHz.: 16 dB.
• Gain 862 MHz.: 20 dB.
• Adjustment of attenuation: 0-16dB
• Output level IMD3 = -60 dB (DIN45004B) 100 dBμV
• Number of RF inputs: 1
• Number of RF outputs: 4 + 1 (Test -20dB)
• Noise figure: Return input and output losses> 10
• Insulation outputs:> 16dB
• Integrated power: 230V ~ 50Hz
• Network cable with bipolar plug.
• Consumption: 3 W.
• ABS case.
• Wall fixing.
• Working temperature range: -20º ÷ + 50ºC
• Dimensions (packed) 133x73x39 mm
• Weight (packed) 0.36 Kg.
